Description
General part information

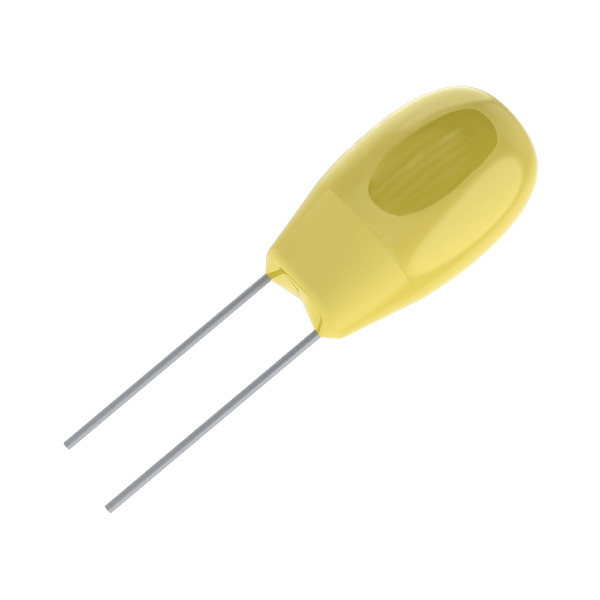

T356K686K016AT7301
68 µF Conformal Coated Tantalum Capacitors 16 V Radial, Disc 1Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T356K686K016AT7301 |
|---|---|
| Capacitance | 68 µF |
| ESR (Equivalent Series Resistance) | 1 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.61 in |
| Lead Spacing | 0.2 in |
| Manufacturer Size Code | T356K |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.35 in |
| Tolerance | 10 % |
| Type | Conformal Coated |
| Voltage - Rated | 16 V |
