Description
General part information

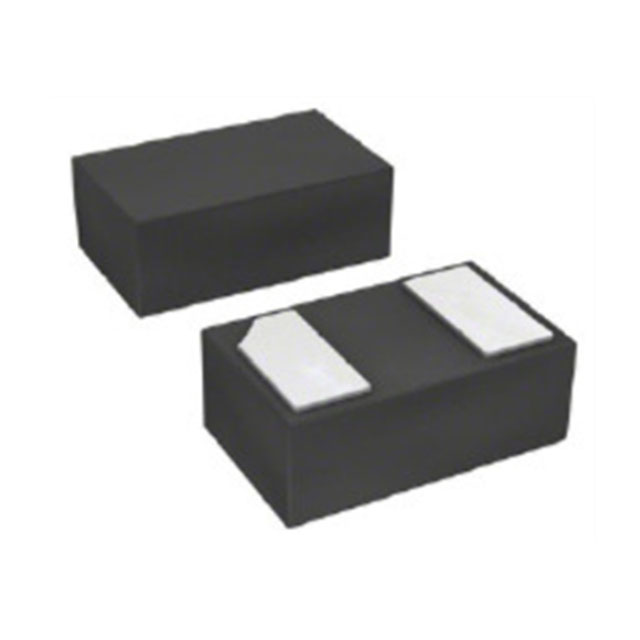

ESD0501L
Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006
Technical Specifications
Parameters and characteristics for this part
| Specification | ESD0501L |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.5 pF |
| Current - Peak Pulse | 4 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1006 Metric), DFN1006 |
| Package Name | DFN1006 |
| Power - Peak Pulse | 60 W |
| Power Line Protection | Yes |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6 V |
| Voltage - Reverse Standoff (Max) | 5 V |
