M7OOK-0910J
Active3M
D-SUB CABLE MFL09K/MC10G/MFL09K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M7OOK-0910J | M7OOK Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 9 | 9 - 50 |
| Shielding | Unshielded | Unshielded |
| Type | DB9 | DB37, DB25, DB50, DB9, DB15 |
| Usage | Patch | Patch |
M7OOK Series
D-SUB CABLE MFL37K/MC37G/MFL37K
| Part | Type | 2nd Connector | Shielding | 1st Connector | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length | Length | Usage | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
DB37 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | 37 | Gold | 0.76 Ám | 30 Áin | 6 ft | 1.83 m | Patch | ||
DB25 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | Gold | 0.76 Ám | 30 Áin | 10 ft | 3.05 m | Patch | |||
DB50 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | 50 | Gold | 0.76 Ám | 30 Áin | 6 ft | 1.83 m | Patch | ||
DB37 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | 37 | Gold | 0.76 Ám | 30 Áin | 6 ft | 1.83 m | Patch | Multiple, Ribbon | |
DB50 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | 50 | Gold | 0.76 Ám | 30 Áin | 10 ft | 3.05 m | Patch | Multiple, Ribbon | |
DB9 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | 9 | Gold | 0.76 Ám | 30 Áin | 10 ft | 3.05 m | Patch | ||
DB15 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | 15 | Gold | 0.76 Ám | 30 Áin | 10 ft | 3.05 m | Patch | ||
DB50 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | 50 | Gold | 0.76 Ám | 30 Áin | 10 ft | 3.05 m | Patch | ||
DB15 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | 15 | Gold | 0.76 Ám | 30 Áin | 6 ft | 1.83 m | Patch | ||
DB15 | Receptacle, Female Sockets | Unshielded | Female Sockets, Receptacle | 15 | Gold | 0.76 Ám | 30 Áin | 6 ft | 1.83 m | Patch | Multiple, Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.03 | |
| 10 | $ 17.75 | |||
| 25 | $ 16.07 | |||
| 50 | $ 14.93 | |||
| 100 | $ 13.90 | |||
| 250 | $ 12.69 | |||
| 500 | $ 11.87 | |||
Description
General part information
M7OOK Series

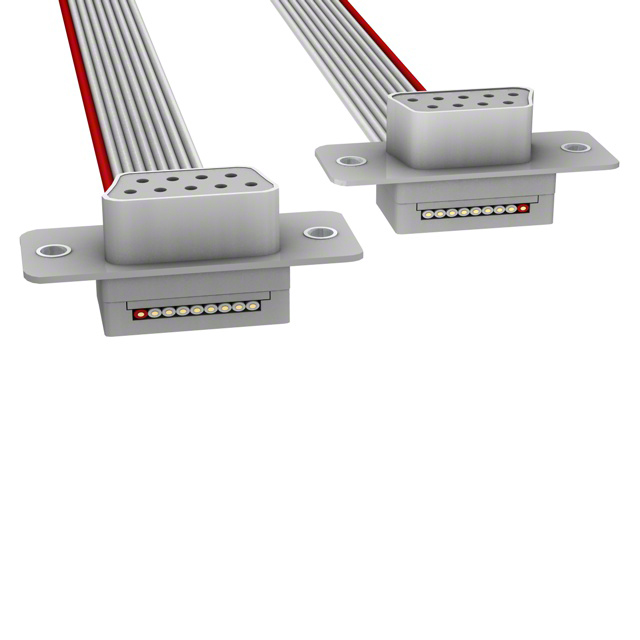

D-Sub Cable Assembly DB9 Gray, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Receptacle, Female Sockets Unshielded
