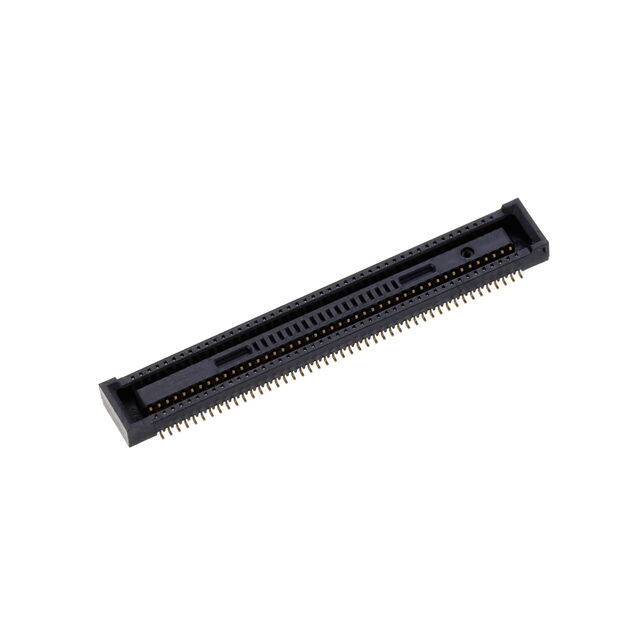

Specification	DF40C-90DS-0.4V(58)

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Height Above Board	0.057 in
Mated Stacking Height Options	3mm, 4mm, 1.5mm
Mounting Type	Surface Mount
Number of Positions	90
Number of Rows	2
Pitch	0.016 in

DF40C Series

...

Part	Number of Rows	Height Above Board	Contact Finish	Mounting Type	Number of Positions	Connector Type	Mated Stacking Height Options	Pitch	Features	Contact Finish Thickness	Mated Stacking Height
Hirose Electric Co Ltd DF40C-100DS-0.4V(58)	2	0.057 in	Gold	Surface Mount	100	Center Strip Contacts Receptacle	1.5mm 3mm	0.016 in
Hirose Electric Co Ltd DF40C-30DP-0.4V(58)	2	0.045 in	Gold	Surface Mount	30	Outer Shroud Contacts Plug	1.5mm 2.5mm 2mm 3.5mm 3mm 4mm	0.016 in	Solder Retention
Hirose Electric Co Ltd DF40C-90DS-0.4V(51)	2	0.057 in	Gold	Surface Mount	90	Center Strip Contacts Receptacle		0.016 in		2 µin	1.5 mm
Hirose Electric Co Ltd DF40C-30DP-0.4V(57)					30	Outer Shroud Contacts Plug
Hirose Electric Co Ltd DF40C-20DS-0.4V(55)					20	Center Strip Contacts Receptacle
Hirose Electric Co Ltd DF40C-120DS-0.4V(51)	2	0.057 in	Gold	Surface Mount	120	Center Strip Contacts Receptacle		0.016 in		1.97 µin	1.5 mm
Hirose Electric Co Ltd DF40C-50DP-0.4V(57)					50	Outer Shroud Contacts Plug
Hirose Electric Co Ltd DF40C-40DP-0.4V(68)					40	Outer Shroud Contacts Plug
Hirose Electric Co Ltd DF40C-20DP-0.4V(58)	2	0.045 in	Gold	Surface Mount	20	Outer Shroud Contacts Plug	1.5mm 2.5mm 2mm 3.5mm 3mm 4mm	0.016 in	Solder Retention
Hirose Electric Co Ltd DF40C-24DS-0.4V(77)					24 pos	Center Strip Contacts Receptacle
