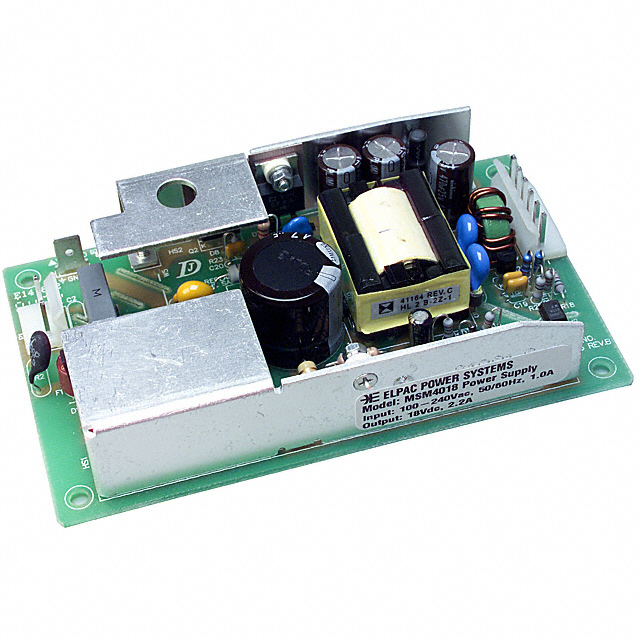

MSM4018
ObsoleteInventus Power
AC/DC CONVERTER 18V 40W
MSM4018
ObsoleteInventus Power
AC/DC CONVERTER 18V 40W
Description
General part information
MSM4018
Open Frame AC DC Converters 1 Output 18V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MSM4018 |
|---|---|
| Applications | Medical |
| Approval Agency | CE |
| Current - Output 1 | 2.2 A |
| Efficiency | 80 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 40 W |
| Size / Dimension Height | 1.06 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 3 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 18 V |
