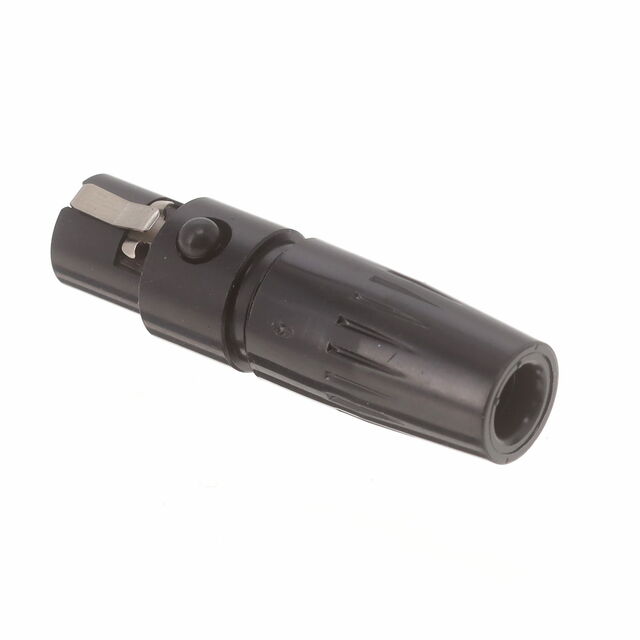

TA5FLBX

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 5P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 5P SLDR

Technical Specifications

Parameters and characteristics for this part

CONN PLUG FMALE MINI XLR 5P SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Voltage Rating	Backshell Material, Plating	Contact Material	Applications	Fastening Type	Termination	Mounting Type	Shell Material	Connector Type	Features	Shielding	Orientation	Insert Material	Color	Cable Opening [custom]	Primary Material	Current Rating (Amps)	Contact Finish - Mating	Shell Finish
Switchcraft Inc. TA5FLBX	85 °C	-55 °C	Mini XLR	125 VAC	Thermoplastic	Copper Alloy	Audio	Latch Lock	Solder	Free Hanging (In-Line)	Copper Alloy	Female Sockets, Plug	Backshell, Cable Clamp	Shielded	Keyed	Thermoplastic	Black	0.115 in, 0.19 in, 2.92 mm, 4.83 mm	Metal	4 A	Silver	Chrome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder
