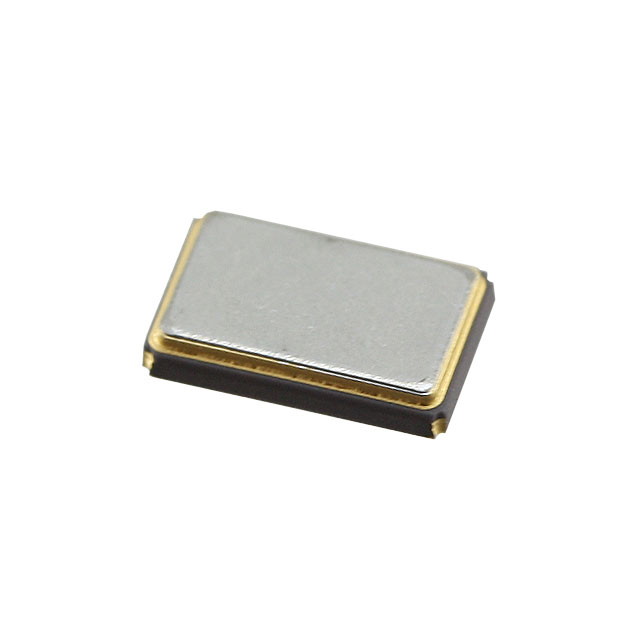

7B-12.000MAHJ-T
ObsoleteTXC CORPORATION
CRYSTAL 12.0000MHZ 18PF SMD
7B-12.000MAHJ-T
ObsoleteTXC CORPORATION
CRYSTAL 12.0000MHZ 18PF SMD
Description
General part information
7B-12.000MAHJ-T
12 MHz ±30ppm Crystal 18pF 100 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 7B-12.000MAHJ-T |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohm |
| Frequency | 12 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.041 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 5 mm |
| Package Name | 4-SMD |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | MHz Crystal |
