PE3CA1104-6
ActivePasternack

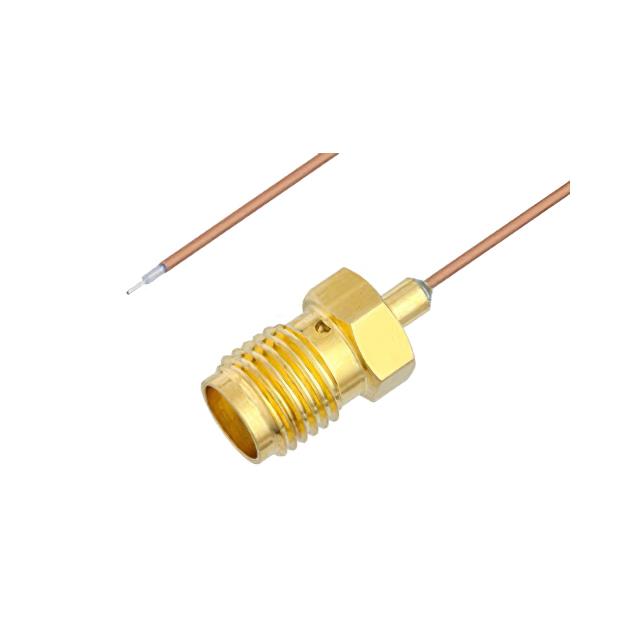

PIGTAIL TEST PROBE CABLE SMA FEM
PE3CA1104-6
ActivePasternack
PIGTAIL TEST PROBE CABLE SMA FEM
Description
General part information
PE3CA1104-6
Cable Assembly Coaxial SMA to Cable 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3CA1104-6 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Cable (Round) |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| Cable Impedance | 50 Ohms |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 0.5 ft |
| Operating Temperature | 125 °C |
| Overall Impedance | 50 Ohms |
| Style | Cable, SMA |
