1709746
ActivePhoenix Contact

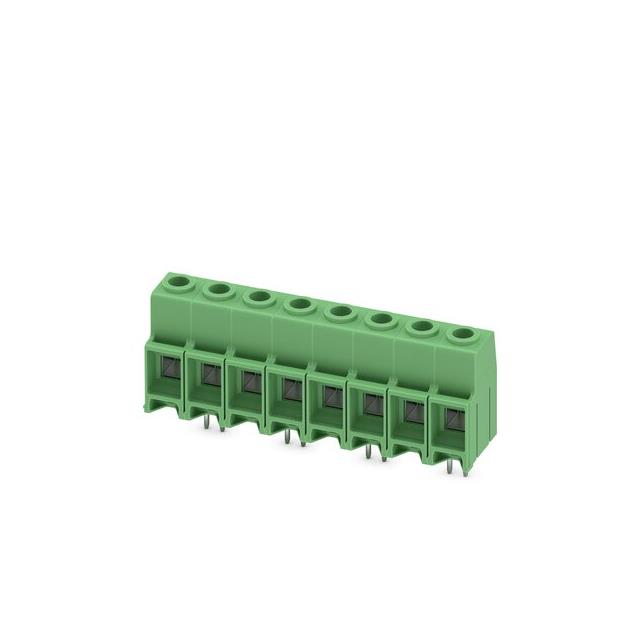

TERM BLK 8P SIDE ENT 10.16MM PCB
1709746
ActivePhoenix Contact
TERM BLK 8P SIDE ENT 10.16MM PCB
Description
General part information
1709746
8 Position Wire to Board Terminal Block Horizontal with Board 0.400" (10.16mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1709746 |
|---|---|
| Color | Green |
| Current | 60 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.4 in |
| Positions Per Level | 8 |
| Screw Thread | M4 |
| Torque - Screw (Maximum) | 1.5 Nm |
| Torque - Screw (Minimum) | 1.2 Nm |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 6 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
