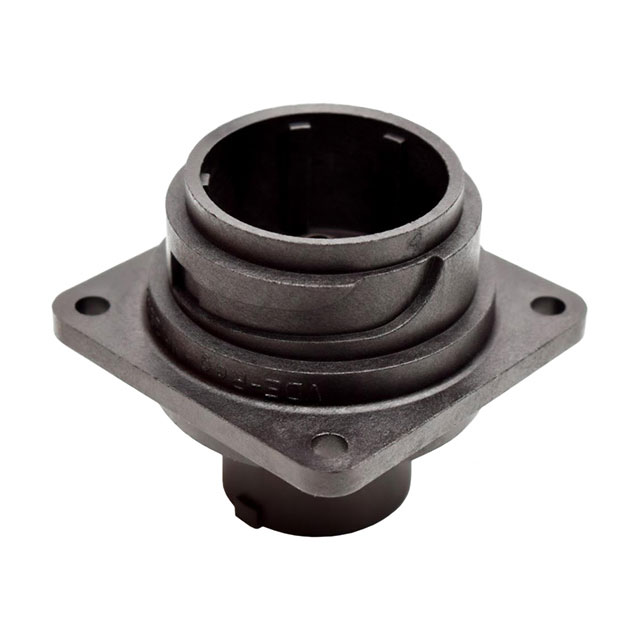

C01610C0140002
ActiveAmphenol Tuchel Industrial
CONN RCPT HSNG MALE 15POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C01610C0140002
ActiveAmphenol Tuchel Industrial
CONN RCPT HSNG MALE 15POS PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C01610C0140002 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 1.5 mm, 1.6 mm |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 15 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | 2 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.66 | |
| 10 | $ 19.01 | |||
| 25 | $ 17.22 | |||
| 50 | $ 16.00 | |||
| 100 | $ 14.90 | |||
| 250 | $ 13.60 | |||
| 500 | $ 12.73 | |||
Description
General part information
C01610C0140002
15 (14 + PE) Position Circular Connector Receptacle Housing Panel Mount
