82641 877U1000

Active

Belden Inc.

CABLE 2COND 24AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 24AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	82641 877U1000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.106 in
Jacket (Insulation) Diameter [diameter]	2.69 mm
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Jacket (Insulation) Material	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Shield Material	Number of Conductors	Usage	Conductor Material	Jacket Color	Shield Coverage
Belden Inc. 82641 877U1000	0.106 in	2.69 mm	Multi-Conductor	1000 ft	304.8 m	0.356 mm	0.014 in	Drain Wire	300 V	32 AWG	7	Foil	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	24 AWG	60 °C	0 °C	Fluorinated Ethylene-Propylene (FEP)	Aluminum	2	Audio Control Instrumentation	Copper Tinned	Natural	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.97

General part information

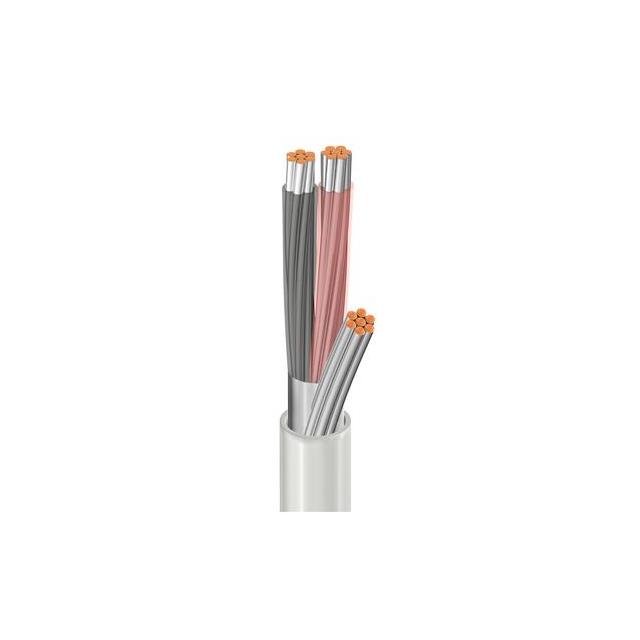

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Natural 24 AWG Foil 1000.0' (304.8m)
