SWPA252010S1R5NT
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 1.5UH 1.3A 182MOHM SMD
SWPA252010S1R5NT
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 1.5UH 1.3A 182MOHM SMD
Description
General part information
SWPA252010S1R5NT

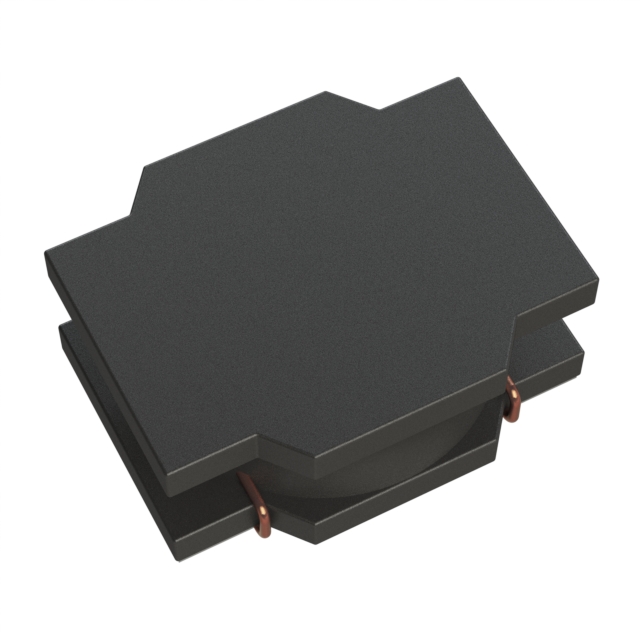

1.5 µH Shielded Drum Core, Wirewound Inductor 1.3 A 182mOhm Max 1008 (2520 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SWPA252010S1R5NT |
|---|---|
| Current - Saturation (Isat) | 1.8 A |
| Current Rating | 1.3 A |
| DC Resistance (DCR) (Max) | 182 mOhm |
| Frequency - Self Resonant | 81 MHz |
| Height - Seated (Max) | 0.039 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1008 (2520 Metric) |
| Package Name | 1008 |
| Shielding | Shielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
