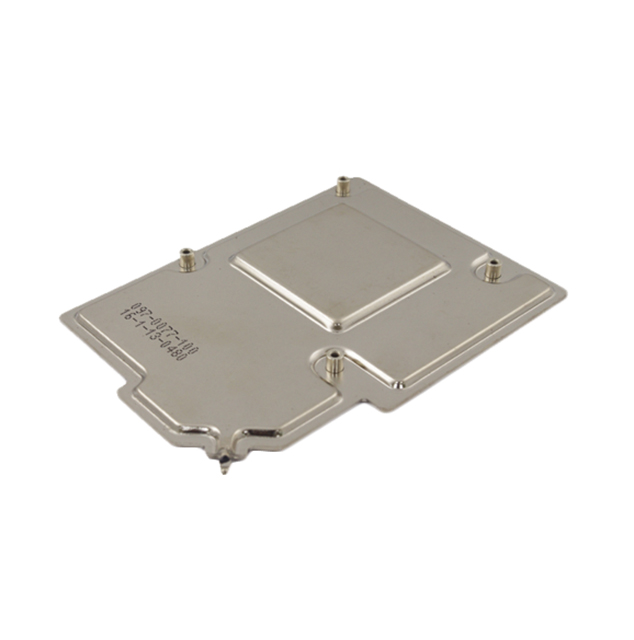

VC-1131-8175-517
ActiveWakefield-Vette
VAPOR CHAM RECT 5.17X81.75X113MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VC-1131-8175-517 |
|---|---|
| Attachment Method | Bolt On |
| Height [z] | 0.204 " |
| Height [z] | 5.17 mm |
| Length | 5.24 " |
| Length | 113 mm |
| Operating Temperature [Max] | 140 °C |
| Operating Temperature [Min] | 104 °F |
| Platform | VGA |
| Power - Cooling | 180 W |
| Shape | Rectangular |
| Thermal Resistance | 0.145 °C/W |
| Type | Vapor Chamber |
| Width [y] | 3.219 in |
| Width [y] | 81.75 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 54.47 | |
Description
General part information
VC-1131-8175-517
Vapor Chamber Rectangular
