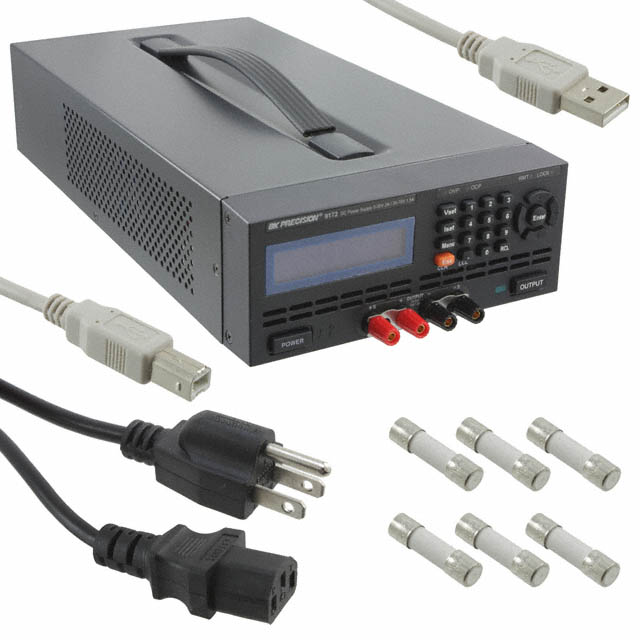

9172
ObsoleteB&K PRECISION
DC PWR SUPL 0-35V 3A/0-70V 1.5A
9172
ObsoleteB&K PRECISION
DC PWR SUPL 0-35V 3A/0-70V 1.5A
Description
General part information
9172
0 ~ 70VDC Output Bench (AC to DC) Power Supply LCD 0 ~ 3A Output 105W Features Memory, Programmable, Tracking, USB Interface
Technical Specifications
Parameters and characteristics for this part
| Specification | 9172 |
|---|---|
| Accuracy - Ammeter (Absolute) | 1 mA |
| Accuracy - Ammeter (Percent) | 0.1 % |
| Accuracy - Voltmeter (Absolute) | 10 mV |
| Accuracy - Voltmeter (Percent) | 0.05 % |
| Current - Output (Max) | 3 A |
| Current - Output (Min) | 0 A |
| Current Regulation - Line (Absolute) | 0.25 mA |
| Current Regulation - Line (Percentage) | 0.01 % |
| Current Regulation - Load (Absolute) | 250 µA |
| Current Regulation - Load (Percentage) | 0.01 % |
| Display Type | LCD |
| Features | USB Interface, Programmable, Tracking, Memory |
| Number of Outputs | 1 |
| Power (Watts) | 105 W |
| Ripple Voltage (Peak-to-Peak) | 5 mV |
| Ripple Voltage (RMS) | 0.5 mV |
| Size / Dimension Height | 3.425 in |
| Size / Dimension Length | 16.339 in |
| Size / Dimension Width | 8.268 in |
| Type | Bench (AC to DC) |
| Voltage - Output (Max) | 70 V |
| Voltage - Output (Min) | 0 V |
| Voltage - Supply | 115 VAC, 230 VAC |
| Voltage - Supply | 230VAC, 115VAC |
| Voltage Regulation - Line (Absolute) | 1 mV |
| Voltage Regulation - Line (Percentage) | 0.01 % |
| Voltage Regulation - Load (Percentage) | 0.01 % |
| Voltage Regulation - Load (Voltage Offset) | 1 mV |
| Weight | 17 lbs |
