CSX532T20.000M3-UT10
ObsoleteCitizen Finedevice Co Ltd
XTAL OSC TCXO 20.0000MHZ SMD
CSX532T20.000M3-UT10
ObsoleteCitizen Finedevice Co Ltd
XTAL OSC TCXO 20.0000MHZ SMD
Description
General part information
CSX532T20.000M3-UT10

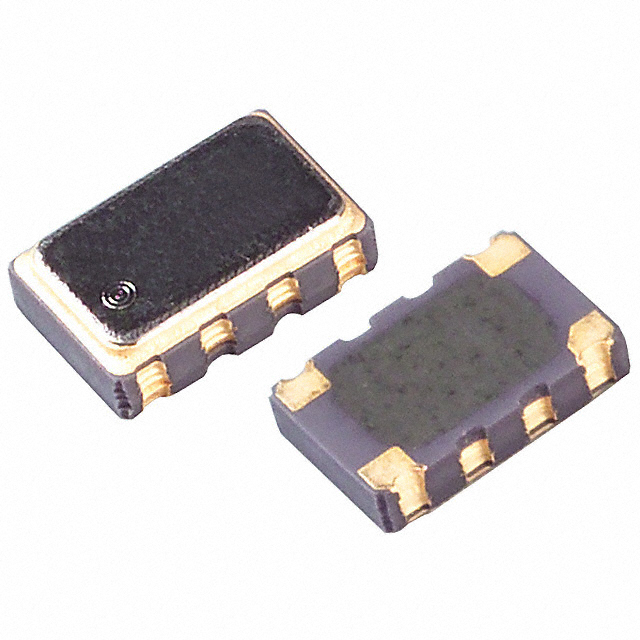

20 MHz TCXO Oscillator 2.4V ~ 3V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CSX532T20.000M3-UT10 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 1.2 mA |
| Frequency | 20 MHz |
| Frequency Stability | 2.5 ppm |
| Height - Seated (Max) | 0.059 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | TCXO |
| Voltage - Supply (Maximum) | 3 V |
| Voltage - Supply (Minimum) | 2.4 V |
