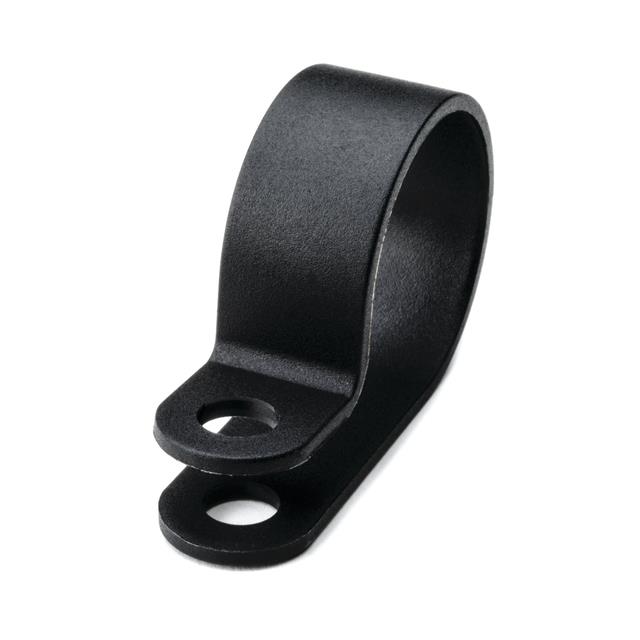

Specification	211-60140

Bundle Center to Mounting Center	0.807 in
Color	Black
Features	Heat Stabilized
Material	Nylon 6, 6, Polyamide (PA66)
Material Flammability Rating	UL94 V-2
Material Thickness	0.059 in
Mounting Type	Fastener
Opening Size	0.866 in
Screw Diameter (Imperial)	0.205 in
Type	P-Type, Clamp
Width	0.472 in

211-60 Series

Part	Bundle Center to Mounting Center	Width	Type	Mounting Type	Material Thickness	Material	Panel Hole Size	Opening Size	Color	Material Flammability Rating	Screw Diameter (Imperial)	Features
HELLERMANNTYTON 211-60049	0.394 in	0.394 in	Clamp P-Type	Fastener	0.047 in	6 Nylon 6 Polyamide (PA66)	0.165 in	0.315 in	Natural	UL94 V-2
HELLERMANNTYTON 211-60040	0.394 in	0.394 in	Clamp P-Type	Fastener	0.039 in	6 Nylon 6 Polyamide (PA66)		0.256 in	Black	UL94 V-2	0.165 in	Heat Stabilized
HELLERMANNTYTON 211-60089	0.591 in	0.394 in	Clamp P-Type	Fastener	0.059 in	6 Nylon 6 Polyamide (PA66)	0.165 in	0.551 in	Natural	UL94 V-2
HELLERMANNTYTON 211-60005	0.512 in	0.394 in	Clamp P-Type	Fastener	0.047 in	6 Nylon 6 Polyamide (PA66)		0.433 in	Black	UL94 V-2	0.165 in	Heat Stabilized
HELLERMANNTYTON 211-60029	0.374 in	0.394 in	Clamp P-Type	Fastener	0.039 in	6 Nylon 6 Polyamide (PA66)	0.165 in	0.197 in	Natural	UL94 V-2
HELLERMANNTYTON 211-60059	0.433 in	0.394 in	Clamp P-Type	Fastener	0.047 in	6 Nylon 6 Polyamide (PA66)	0.165 in	0.374 in	Natural	UL94 V-2
HELLERMANNTYTON 211-60003	0.394 in	0.394 in	Clamp P-Type	Fastener	0.047 in	6 Nylon 6 Polyamide (PA66)		0.315 in	Black	UL94 V-2	0.165 in	Heat Stabilized
HELLERMANNTYTON 211-60006	0.551 in	0.394 in	Clamp P-Type	Fastener	0.047 in	6 Nylon 6 Polyamide (PA66)		0.492 in	Black	UL94 V-2	0.165 in	Heat Stabilized
HELLERMANNTYTON 211-60120	0.709 in	0.394 in	Clamp P-Type	Fastener	0.059 in	6 Nylon 6 Polyamide (PA66)		0.748 in	Black	UL94 V-2	0.165 in	Heat Stabilized
HELLERMANNTYTON 211-60050	0.394 in	0.394 in	Clamp P-Type	Fastener	0.047 in	6 Nylon 6 Polyamide (PA66)		0.315 in	Black	UL94 V-2	0.165 in	Heat Stabilized
