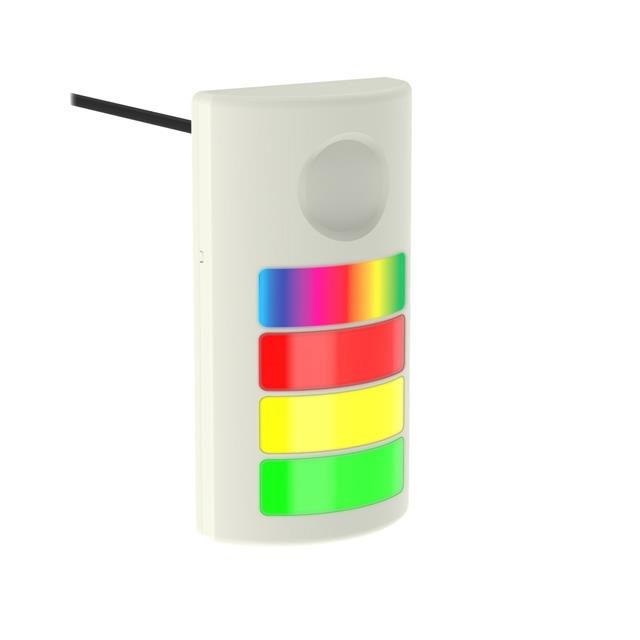

Specification	TLF100P4AKCQP

Features	Alarm
Function - Audible	Continuous
Function - Lighting	Steady
Ingress Protection Description	Waterproof, Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65, IP69K
Lamp Type	LED
Light Color	Green, Blue, Red
Number of Stacks	5
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-40 °C
Termination Style	Connector
Type	Complete Unit
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	18 VAC

TLF100 Series

Part	Type	Number of Stacks	Termination Style	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Function - Lighting	Function - Audible	Light Color	Features	Lamp Type	Voltage - Supply
BANNER ENGINEERING TLF100P4ACQP	Complete Unit	5	Cable with Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C	12 VDC	30 VDC	Steady	Continuous	Blue Green Red Yellow	Alarm	LED
BANNER ENGINEERING TLF100P3CQP	Complete Unit	3	Cable with Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C	12 VDC	30 VDC	Steady	Continuous	Green Red Yellow	Alarm	LED
BANNER ENGINEERING TLF100P4QP	Complete Unit	4	Cable with Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C	12 VDC	30 VDC	Steady	Continuous	Blue Green Red Yellow	Alarm	LED
BANNER ENGINEERING TLF100PDLGGRRQP	Complete Unit	4	Cable with Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C			Steady	Continuous	Green Red	Alarm	LED	24 VDC
BANNER ENGINEERING TLF100PDLGGRRAQP	Complete Unit	4	Cable with Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C			Steady	Continuous	Green Red	Alarm	LED	24 VDC
BANNER ENGINEERING TLF100PDLBGYR	Complete Unit	4	Cable with Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C			Steady	Continuous	Blue Green Red Yellow	Alarm	LED	24 VDC
BANNER ENGINEERING TLF100PDLGYR	Complete Unit	3	Cable with Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C			Steady	Continuous	Green Red Yellow	Alarm	LED	24 VDC
BANNER ENGINEERING TLF100P3AC	Complete Unit	4	Cable with Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C	12 VDC	30 VDC	Steady	Programmable	Green Red Yellow	Alarm	LED
BANNER ENGINEERING TLF100P3AKCQP	Complete Unit	4	Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C	18 VAC	30 VDC	Steady	Programmable	Blue Green Red	Alarm	LED
BANNER ENGINEERING TLF100P4AC	Complete Unit	5	Cable with Connector	Dust Tight Water Resistant Waterproof	IP65 IP69K	50 °C	-40 °C	12 VDC	30 VDC	Steady	Continuous	Blue Green Red Yellow	Alarm	LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TLF100 Pro IO Reference Guide

TLF100P4AKCQP | Datasheet

Drawing EN

Datasheet
