6771215332F

Active

DIALIGHT

7MM HG/G PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

7MM HG/G PMI-12VDC W/O-RING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

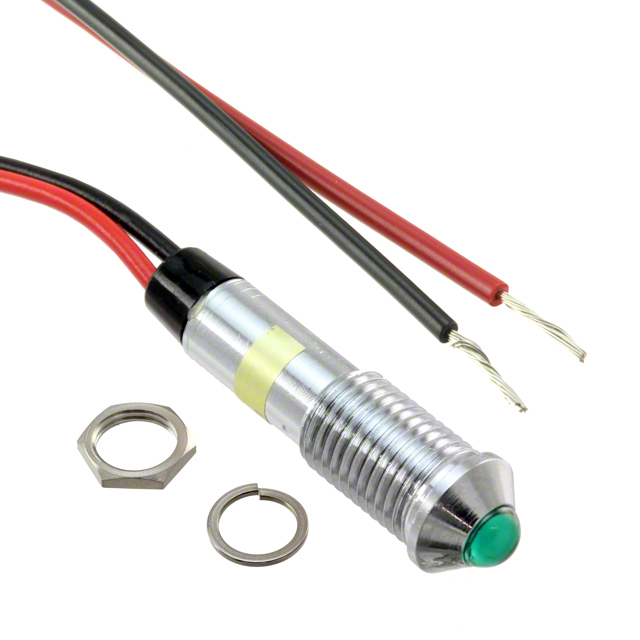

LED Panel Indicator Green 12V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available

Specification	6771215332F	6771215 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Green	Green
Lens Size [diameter]	4 mm	4 - 4.5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	4135 mcd	4135 - 12000 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	25 °
Voltage	12 V	6 - 24 V
Wavelength - Peak	-	525 nm

Part	Ratings	Millicandela Rating	Current	Wavelength - Peak	Panel Cutout Shape	Lens Style	Lens Size [diameter]	Ingress Protection	Voltage	Viewing Angle	Lamp Color	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6771215342F	DC	12000 mcd	30 mA	525 nm	Round	Round with Domed Top	4.5 mm	IP66, NEMA 4X	24 V	25 °	Green	LED	7.2 mm	0.28 in
DIALIGHT 6771215322F	DC	12000 mcd	30 mA	525 nm	Round	Round with Domed Top	4.5 mm	IP66, NEMA 4X	6 V	25 °	Green	LED	7.2 mm	0.28 in
DIALIGHT 6771215332F	DC	4135 mcd	30 mA		Round	Round with Domed Top	4 mm	IP66, NEMA 4X	12 V		Green	LED			7.11 mm	0.28 "
