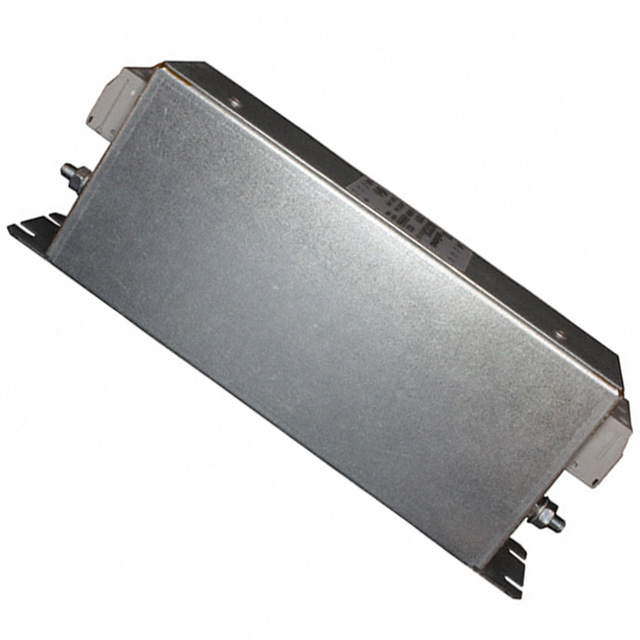

7BCF10

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 7A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 7A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	7BCF10

Applications	Power Drive Systems, Inverters
Approval Agency	VDE, UR
Configuration	Two Stage
Current	7 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V

Part	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Approval Agency	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Rated AC (Phase to Phase)	Termination Style	Filter Type	Configuration	Applications	Mounting Type
TE Connectivity Raychem Cable Protection 7BCF10	7 A	60 Hz	50 Hz	UR VDE	-10 °C	50 °C	480 V	Terminal Block	Three Phase (Delta)	Two Stage	Inverters Power Drive Systems	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.71

General part information

Three Phase (Delta) EMC/EMI Line Filter 7 A 50/60Hz Two Stage Terminal Block
