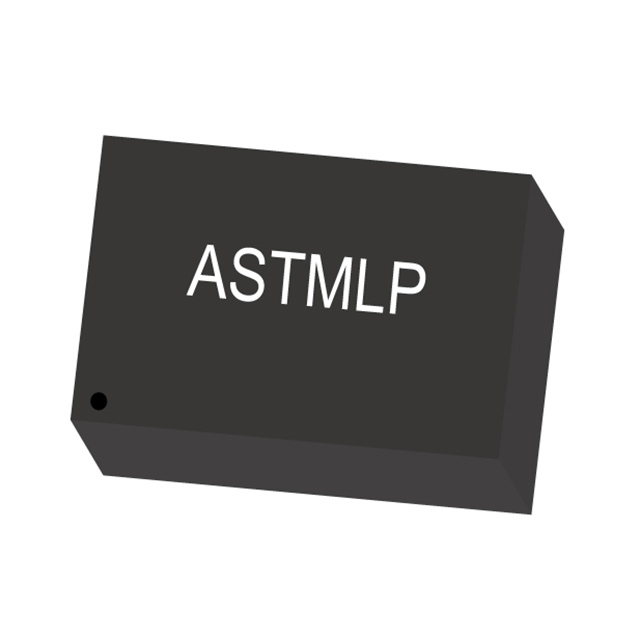

ASTMLPD-125.000MHZ-LJ-E-T
ObsoleteAbracon LLC
MEMS OSC XO 125.0000MHZ LVCMOS
ASTMLPD-125.000MHZ-LJ-E-T
ObsoleteAbracon LLC
MEMS OSC XO 125.0000MHZ LVCMOS
Description
General part information
ASTMLPD-125.000MHZ-LJ-E-T
125 MHz XO (Standard) LVCMOS Oscillator 2.25V ~ 3.63V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASTMLPD-125.000MHZ-LJ-E-T |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 4.2 mA |
| Current - Supply (Max) | 7.5 mA |
| Frequency | 125 MHz |
| Frequency Stability | 20 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2.5 mm |
| Package Name | 4-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 2.25 V |
