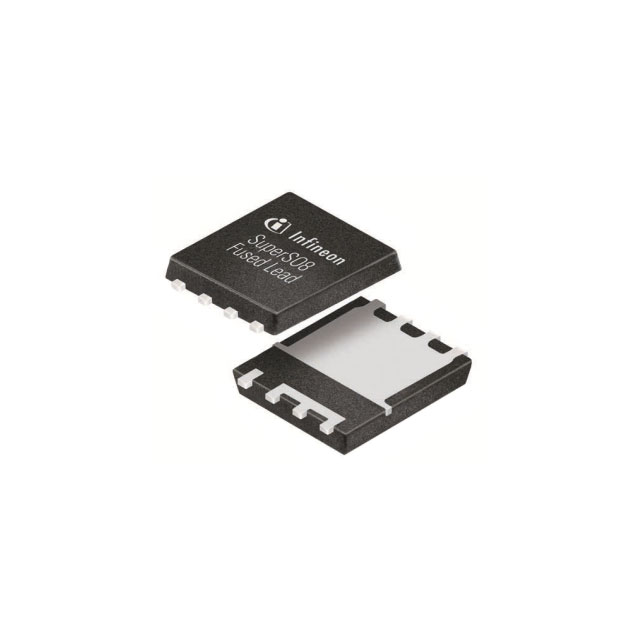

ISC019N04NM5ATMA1

Active

Infineon Technologies

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 40 V ; SUPERSO8 5X6 PACKAGE; 1.9 MOHM;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

ISC019N04NM5ATMA1

Active

Infineon Technologies

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 40 V ; SUPERSO8 5X6 PACKAGE; 1.9 MOHM;

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISC019N04NM5ATMA1

Current - Continuous Drain (Id) @ 25°C	29 A, 170 A
Drain to Source Voltage (Vdss)	40 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	55 nC
Input Capacitance (Ciss) (Max) @ Vds	3900 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max)	100 W, 3 W
Rds On (Max) @ Id, Vgs	1.9 mOhm
Supplier Device Package	PG-TDSON-8 FL
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.4 V

ISC019N Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Power Dissipation (Max)	Technology	FET Type	Mounting Type	Drain to Source Voltage (Vdss)	Vgs (Max)	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Supplier Device Package
Infineon Technologies ISC019N04NM5ATMA1	-55 °C	175 ░C	55 nC	8-PowerTDFN	3 W 100 W	MOSFET (Metal Oxide)	N-Channel	Surface Mount	40 V	20 V	3.4 V	3900 pF	29 A 170 A	1.9 mOhm	PG-TDSON-8 FL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.55
		10	$ 1.01
		50	$ 0.86
		100	$ 0.69
		200	$ 0.65
Digikey	Cut Tape (CT)	1	$ 1.95
		10	$ 1.24
		100	$ 0.84
		500	$ 0.67
		1000	$ 0.61
		2000	$ 0.56
	Digi-Reel®	1	$ 1.95
		10	$ 1.24
		100	$ 0.84
		500	$ 0.67
		1000	$ 0.61
		2000	$ 0.56
	Tape & Reel (TR)	5000	$ 0.52
Newark	Each (Supplied on Cut Tape)	1	$ 1.95
		10	$ 1.37
		25	$ 1.25
		50	$ 1.14
		100	$ 1.02
		250	$ 0.94
		500	$ 0.86
		1000	$ 0.80

Description

General part information

ISC019N Series

With the OptiMOSTM5 40V normal level product family Infineon offers a benchmark solution for applications requiring normal level (higher threshold voltage) drive capability. The high Vthin the normal level portfolio offers immunity to false turn-on due to noisy environments. In addition, lower QGD/QGSratios (CGD/CGSdivider ratio) reduce the peak of the gate voltage spikes, further contributing to the robustness against unwanted turn-on.
