Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1902163240-109 | T190 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Features | EMC Resistant, Corrosion Resistant | EMC Resistant, Corrosion Resistant |
| Housing Color | Black | Gray, Black |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof, IP65 - Dust Tight, Water Resistant |
| Lock Location | Screw Locks on Hood | Screw Locks on Hood |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H16B | H24B, H10B, H16B |
| Size / Dimension | - | 90 mm |
| Size / Dimension | - | 57 mm |
| Size / Dimension [x] | 5.118 in | 4.331 - 6.142 in |
| Size / Dimension [x] | 130 mm | 5.591 - 156 mm |
| Size / Dimension [y] | 2.094 " | 2.094 - 2.244 " |
| Size / Dimension [y] | 53.2 mm | 2.094 - 53.2 mm |
| Size / Dimension [z] | 80 mm | 3.543 - 90 mm |
| Size / Dimension [z] | 3.15 " | 2.756 - 3.543 in |
| Style | Side and Top Entry | Side and Top Entry |
| Thread Size | M40, M32 | M32, PG29, M40, M25, M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.19 | |
| 12 | $ 17.87 | |||
T190 Series
T1902241232-000
| Part | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Style | Size | Ingress Protection | Connector Type | Housing Material | Thread Size | Lock Location | Features | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1902241232-000 | Gray | 125 °C | -40 °C | Powder Coated | 2.244 " | 3.543 in | 156 mm | 90 mm | 57 mm | 6.142 in | Side and Top Entry | H24B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | M32 | Screw Locks on Hood | |||
TE Connectivity AMP Connectors T1902101229-000 | 125 °C | -40 °C | Side and Top Entry | H10B | IP65 - Dust Tight, Water Resistant | Hood | PG29 | Screw Locks on Hood | ||||||||||||
TE Connectivity AMP Connectors T1902244025-000 | Gray | 125 °C | -40 °C | Powder Coated | 2.244 " | 3.543 in | 156 mm | 90 mm | 57 mm | 6.142 in | Side and Top Entry | H24B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | M25, M40 | Screw Locks on Hood | |||
TE Connectivity AMP Connectors T1902242240-000 | Gray | 125 °C | -40 °C | Powder Coated | 2.244 " | 3.543 in | 156 mm | 90 mm | 57 mm | 6.142 in | Side and Top Entry | H24B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | Screw Locks on Hood | ||||
TE Connectivity AMP Connectors T1902100232-009 | Black | 125 °C | -40 °C | Powder Coated | 2.094 " | 2.756 in | 110 mm | 4.331 in | Side and Top Entry | H10B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | M32 | Screw Locks on Hood | Corrosion Resistant, EMC Resistant | 53.2 mm | 70 mm | ||
TE Connectivity AMP Connectors T1900100232-000 | 125 °C | -40 °C | Side and Top Entry | H10B | IP65 - Dust Tight, Water Resistant | Hood | M32 | Screw Locks on Hood | ||||||||||||
TE Connectivity AMP Connectors T1902163240-109 | Black | 125 °C | -40 °C | Powder Coated | 2.094 " | 3.15 " | 130 mm | 5.118 in | Side and Top Entry | H16B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | M32, M40 | Screw Locks on Hood | Corrosion Resistant, EMC Resistant | 53.2 mm | 80 mm | ||
TE Connectivity AMP Connectors T1902241240-000 | Gray | 125 °C | -40 °C | Powder Coated | 2.244 " | 3.543 in | 156 mm | 90 mm | 57 mm | 6.142 in | Side and Top Entry | H24B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | Screw Locks on Hood | ||||
TE Connectivity AMP Connectors T1902242540-000 | Gray | 125 °C | -40 °C | Powder Coated | 2.244 " | 3.543 in | 156 mm | 90 mm | 57 mm | 6.142 in | Side and Top Entry | H24B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | M25, M40 | Screw Locks on Hood | |||
TE Connectivity AMP Connectors T1900102232-000 | 125 °C | -40 °C | Side and Top Entry | H10B | IP65 - Dust Tight, Water Resistant | Hood | M32 | Screw Locks on Hood | ||||||||||||
TE Connectivity AMP Connectors T1902243240-000 | Gray | 125 °C | -40 °C | Powder Coated | 2.244 " | 3.543 in | 156 mm | 90 mm | 57 mm | 6.142 in | Side and Top Entry | H24B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | M32, M40 | Screw Locks on Hood | |||
TE Connectivity AMP Connectors T1902240229-009 | Black | 125 °C | -40 °C | Powder Coated | 5.591 ", 142 mm | Side and Top Entry | H24B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | PG29 | Screw Locks on Hood | Corrosion Resistant, EMC Resistant | 2.094 ", 53.2 mm | 3.543 ", 90 mm | |||||
TE Connectivity AMP Connectors T1902244020-000 | Gray | 125 °C | -40 °C | Powder Coated | 2.244 " | 3.543 in | 156 mm | 90 mm | 57 mm | 6.142 in | Side and Top Entry | H24B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | M20, M40 | Screw Locks on Hood | |||
TE Connectivity AMP Connectors T1902164020-109 | Black | 125 °C | -40 °C | Powder Coated | 2.094 " | 3.15 " | 130 mm | 5.118 in | Side and Top Entry | H16B | IP68 - Dust Tight, Waterproof | Hood | Aluminum Alloy, Die Cast | M20, M40 | Screw Locks on Hood | Corrosion Resistant, EMC Resistant | 53.2 mm | 80 mm |
Description
General part information
T190 Series

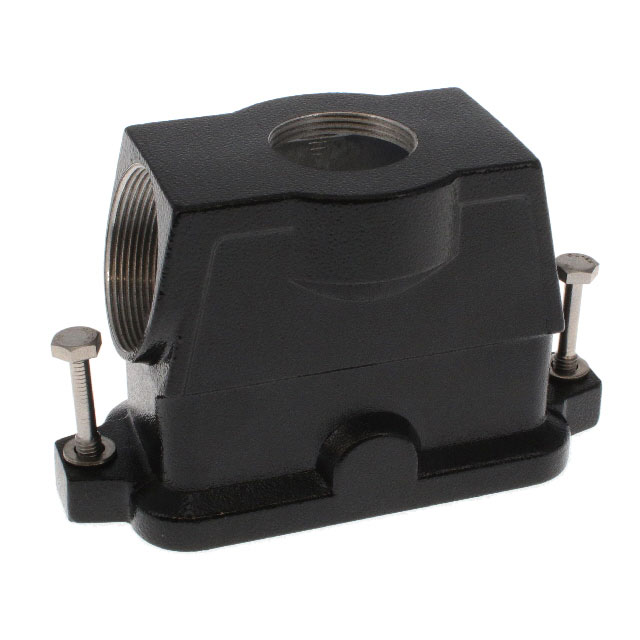

Hood Connector Side and Top Entry M32 and M40 H16B IP68 - Dust Tight, Waterproof
