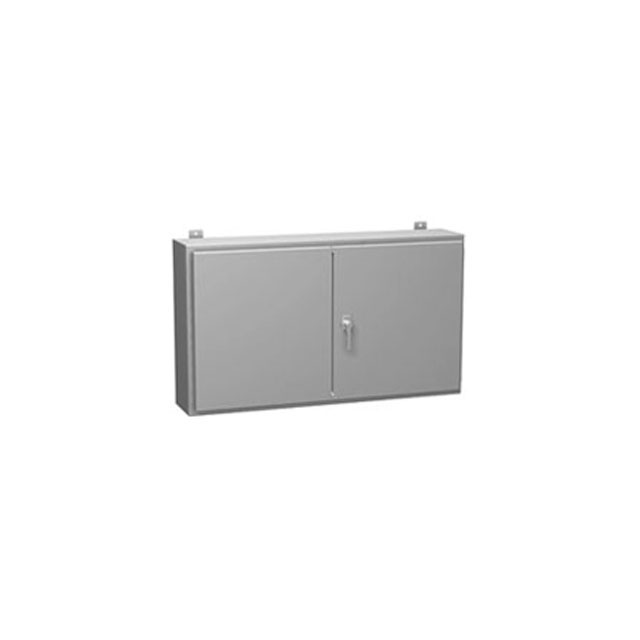

1422VV12

Active

Hammond Manufacturing

BOX STEEL GRAY 42"L X 42"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnclosure Overview

1422VV12

Active

Hammond Manufacturing

BOX STEEL GRAY 42"L X 42"W

Deep-Dive with AI

DocumentsEnclosure Overview

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	1	$ 1856.87

Description

General part information

1422 Series

Box Metal, Steel Gray Hinged Door, Lid 42.000" L x 42.000" W (1066.80mm x 1066.80mm) X 12.000" (304.80mm)

Documents

Technical documentation and resources

Enclosure Overview

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1422VV12	1422 Series

Area (L x W)	1.138 m²	1.115 - 9755 cm²
Area (L x W)	1764 in²	1008 - 2313 in²
Area (L x W)	-	1260 in²
Area (L x W)	-	8129 cm²
Color	Gray	Gray, Natural
Container Type	Box	Box
Design	Hinged Door, Lid	Hinged Door, Lid
Features	Interior Panels	Dual Door, Feet, Interior Panels, Quarter Turn Latches, Lockable, Doors - 3
Features	-	4 Cable Entries
Height	-	8 - 12.69 "
Height	-	203.2 - 254 mm
Height	-	322.33 mm
Material	Metal, Steel	Metal, Steel
Ratings	NEMA 12, UL-508, IP54	NEMA 12, UL-508, IP54
Shipping Info	Drop shipped from the Manufacturer's Warehouse	Drop shipped from the Manufacturer's Warehouse
Size / Dimension	-	914.4 mm
Size / Dimension	-	1524 mm
Size / Dimension [x]	1066.8 mm	1066.8 - 1524 mm
Size / Dimension [x]	42 in	42 - 60 in
Size / Dimension [y]	42 in	24 - 48.06 "
Size / Dimension [y]	1066.8 mm	609.6 - 1220.72 mm
Thickness	14 Gauge	12 - 14 Gauge
Weight	68.9 kg	35.8 - 1081 kg
Weight	152 lbs	79 - 2383 lbs
Weight	-	52.2 kg
Weight	-	660 lbs

1422 Series

CABINET STEEL 10.7X60.1X72.1 GRY

Part	Shipping Info	Features	Color	Weight	Weight	Material	Thickness	Ratings	Container Type	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Design	Area (L x W)	Area (L x W)
Hammond Manufacturing 1422E10F	Drop shipped from the Manufacturer's Warehouse	Dual Door, Feet	Gray	283.5 kg	625 lbs	Metal, Steel
Hammond Manufacturing 1422E24F	Drop shipped from the Manufacturer's Warehouse	Dual Door, Feet	Gray	367.4 kg	810 lbs	Metal, Steel
Hammond Manufacturing 1422P8	Drop shipped from the Manufacturer's Warehouse	Interior Panels	Gray	35.8 kg	79 lbs	Metal, Steel	14 Gauge	IP54, NEMA 12, UL-508	Box	8 "	203.2 mm	24 "	609.6 mm	42 in	1066.8 mm	Hinged Door, Lid	1008 in²	6503 cm²
Hammond Manufacturing 1422D10	Drop shipped from the Manufacturer's Warehouse	Dual Door	Gray	249.5 kg	550 lbs	Metal, Steel
Hammond Manufacturing 1422B12	Drop shipped from the Manufacturer's Warehouse	Dual Door	Gray	222.7 kg	491 lbs	Metal, Steel
Hammond Manufacturing 1422F20F	Drop shipped from the Manufacturer's Warehouse	Dual Door, Feet	Gray	401.4 kg	885 lbs	Metal, Steel
Hammond Manufacturing 1422B12F	Drop shipped from the Manufacturer's Warehouse	Dual Door, Feet	Gray	222.7 kg	491 lbs	Metal, Steel
Hammond Manufacturing 1422D12F	Drop shipped from the Manufacturer's Warehouse	Dual Door, Feet	Gray	257.2 kg	567 lbs	Metal, Steel
Hammond Manufacturing 1422VW12	Drop shipped from the Manufacturer's Warehouse	Interior Panels	Gray			Metal, Steel	14 Gauge	IP54, NEMA 12, UL-508	Box			42 in	1066.8 mm	48 "	1219.2 mm	Hinged Door, Lid	2016 in²	1.301 m²
Hammond Manufacturing 1422N4F12F	Drop shipped from the Manufacturer's Warehouse	Dual Door, Feet	Gray	340.2 kg	750 lbs	Metal, Steel
