PS000DD6D

Obsolete

TE Connectivity Corcom Filters

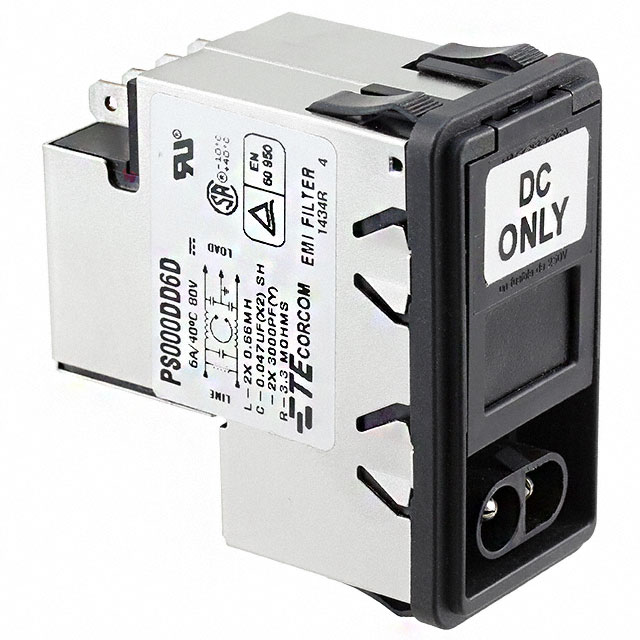

LINE FILTER 80VDC 6A PANEL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

PS000DD6D

Obsolete

TE Connectivity Corcom Filters

LINE FILTER 80VDC 6A PANEL MNT

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PS000DD6D	PS00 Series

Accomodates a Fuse	-	True
Applications	General Purpose	General Purpose
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Configuration	-	Single Stage
Connector Style	-	IEC 320-C14
Connector Type	-	Receptacle, Male Blades - Module, Male Blades, Receptacle
Current	6 A	3 - 6 A
Current Rating - Appliance Inlet	-	3 - 10 A
Current Rating - Filter	-	3 - 10 A
Features	-	Conversion Clip, Shielded, Voltage Selector
Filter Type	DC	Filtered (EMI, RFI) - Commercial, Single Phase, DC, Filtered (EMI, RFI) - Commercial, Medical, Unfiltered - Commercial
Fuse Holder, Drawer	-	Fuse Holder, Fuse Holder, Twin Fused
Mounting Type	-	Panel Mount, Snap-In
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Panel Cutout Dimensions	-	Variable Size
Panel Thickness	-	2.11 - 2.9 mm
Panel Thickness	-	0.079 - 0.114 in
Panel Thickness	-	0.79 mm
Panel Thickness	-	0.031 "
Panel Thickness	-	2 mm
Termination	-	0.187 "
Termination	-	4.7 mm
Termination	-	Quick Connect
Termination Style	Quick Connect	Quick Connect
Voltage - Rated DC	80 V	80 V
Voltage Rating - Appliance Inlet	-	120 VAC

PS00 Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Type	Connector Style	Approval Agency	Fuse Holder, Drawer	Filter Type	Current Rating - Filter	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Mounting Type	Current Rating - Appliance Inlet	Features	Panel Cutout Dimensions	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Termination Style	Current	Voltage - Rated DC	Configuration	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Panel Thickness [Max]
TE Connectivity Corcom Filters PS00SSSXA	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial	10 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	10 A	Conversion Clip, Shielded, Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS000SS6B	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial	6 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	6 A	Conversion Clip, Shielded	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS000DD3D			CSA, UL, VDE		Single Phase														Quick Connect	3 A	80 V	Single Stage	General Purpose	-10 °C	40 °C
TE Connectivity Corcom Filters PS000DD6D			CSA, UL, VDE		DC														Quick Connect	6 A	80 V		General Purpose	-10 °C	40 °C
TE Connectivity Corcom Filters PS000DM6E	Male Blades, Receptacle	IEC 320-C14	CSA, UL, VDE	Fuse Holder, Twin Fused	Filtered (EMI, RFI) - Commercial, Medical	6 A		0.079 "	0.79 mm	0.031 "	Panel Mount, Snap-In	6 A		Variable Size	120 VAC			Quick Connect								2 mm
TE Connectivity Corcom Filters PS00SDH3A	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder, Twin Fused	Filtered (EMI, RFI) - Commercial, Medical	3 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	3 A	Shielded, Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS000SH60	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial, Medical	6 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	6 A	Conversion Clip	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS00XSS6B	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial	6 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	6 A	Conversion Clip, Shielded, Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS00SD000	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder, Twin Fused	Unfiltered - Commercial		2.11 mm	0.083 "	0.79 mm	0.031 "	Panel Mount, Snap-In	10 A	Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
TE Connectivity Corcom Filters PS00XSSX0	Receptacle, Male Blades - Module	IEC 320-C14	CSA, UL, VDE	Fuse Holder	Filtered (EMI, RFI) - Commercial	10 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Panel Mount, Snap-In	10 A	Conversion Clip, Voltage Selector	Variable Size	120 VAC	0.187 "	4.7 mm	Quick Connect
