0009652079

Obsolete

Molex

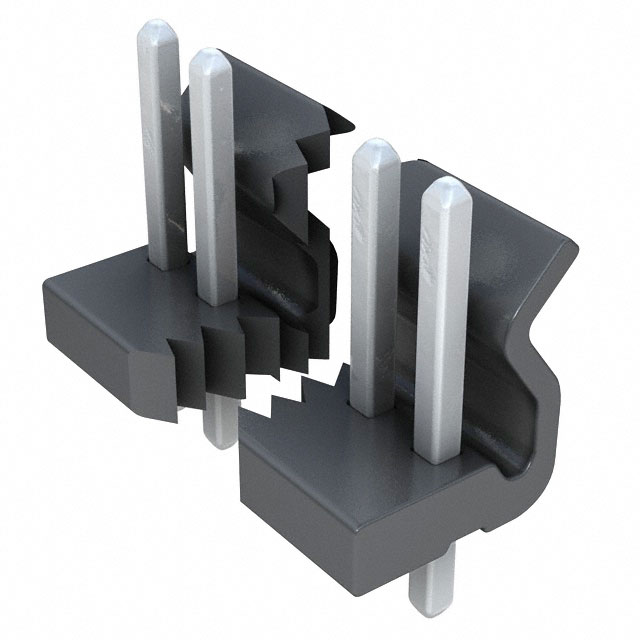

CONN HEADER VERT 7POS 3.96MM

Search across all available documentation for this part.

Obsolete

Molex

CONN HEADER VERT 7POS 3.96MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0009652079	000965 Series

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	-	5.08 µm
Contact Finish Thickness - Mating	-	200 µin
Contact Length - Mating	10.65 mm	10.65 mm
Contact Length - Mating	0.419 in	0.419 in
Contact Length - Post	-	3.6 mm
Contact Length - Post	-	0.142 in
Contact Length - Post [x]	0.143 in	0.143 in
Contact Length - Post [x]	3.63 mm	3.63 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Friction Lock	Friction Lock
Insulation Color	-	Natural
Insulation Height	0.482 in	0.482 in
Insulation Height	12.25 mm	12.25 mm
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Through Hole	Through Hole
Number of Positions	7	6 - 8
Number of Positions Loaded	All	All
Number of Rows	1	1
Overall Contact Length	17.45 mm	17.45 mm
Overall Contact Length	0.687 in	0.687 in
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Shrouding	Shrouded - 1 Wall	Shrouded - 1 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

CONN HEADER VERT 8POS 3.96MM

Part	Contact Finish - Post	Termination	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Type	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions Loaded	Number of Positions	Insulation Material	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Mounting Type	Material Flammability Rating	Insulation Height	Insulation Height	Applications	Style	Connector Type	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]
Molex 0009652088	Tin	Solder	Natural	17.45 mm	0.687 in	Male Pin	0.156 in	3.96 mm	Shrouded - 1 Wall	All	8	Polyamide (PA66), Nylon 6/6	Friction Lock	3.6 mm	0.142 in	10.65 mm	0.419 in	Through Hole	UL94 V-2	0.482 in	12.25 mm	Automotive, General Purpose, Industrial, Medical, Telecommunications	Board to Cable/Wire	Header	1	5.08 µm	200 µin	Square	Brass
Molex 0009652079	Tin	Solder		17.45 mm	0.687 in	Male Pin	0.156 in	3.96 mm	Shrouded - 1 Wall	All	7	Polyamide (PA66), Nylon 6/6	Friction Lock			10.65 mm	0.419 in	Through Hole	UL94 V-2	0.482 in	12.25 mm	Automotive, General Purpose, Industrial, Medical, Telecommunications	Board to Cable/Wire	Header	1			Square	Brass	0.143 in	3.63 mm
Molex 0009652069	Tin	Solder		17.45 mm	0.687 in	Male Pin	0.156 in	3.96 mm	Shrouded - 1 Wall	All	6	Polyamide (PA66), Nylon 6/6	Friction Lock			10.65 mm	0.419 in	Through Hole	UL94 V-2	0.482 in	12.25 mm	Automotive, General Purpose, Industrial, Medical, Telecommunications	Board to Cable/Wire	Header	1			Square	Brass	0.143 in	3.63 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 7 position 0.156" (3.96mm)
