Description
General part information
173107 Series
D-Sub Mixed Contact Connectors FCT ML DSUB RA PC PLG 24W7 W/CLINCH
Technical Specifications
Parameters and characteristics for this part
| Specification | 1731070123 |
|---|---|
| Color | Black |

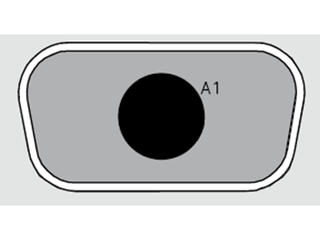

| Connector Layout | DE, E |
| Connector Style | Combo, D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Coax or Power, Coax, Power |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Finish | Tin Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 1W1 |
| Position Types | Coax, Power |
| Shell Material | Steel |
| Shell Size | 1 |
