Description
General part information

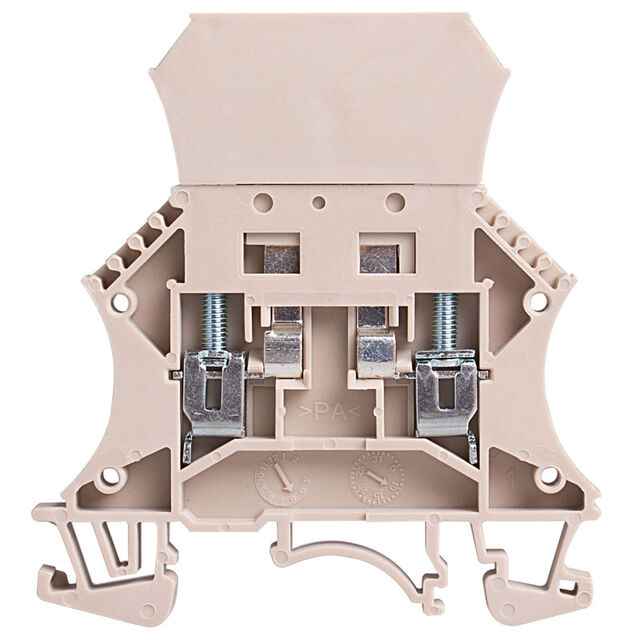

CTR4D
Terminal Block Connector 2 Position Disconnect Beige 10-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | CTR4D |
|---|---|
| Color | Beige |
| Current - UL | 2 A |
| Features | Diode |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 6 mm |
| Termination Style | Screw |
| Type | Disconnect |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 22 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
