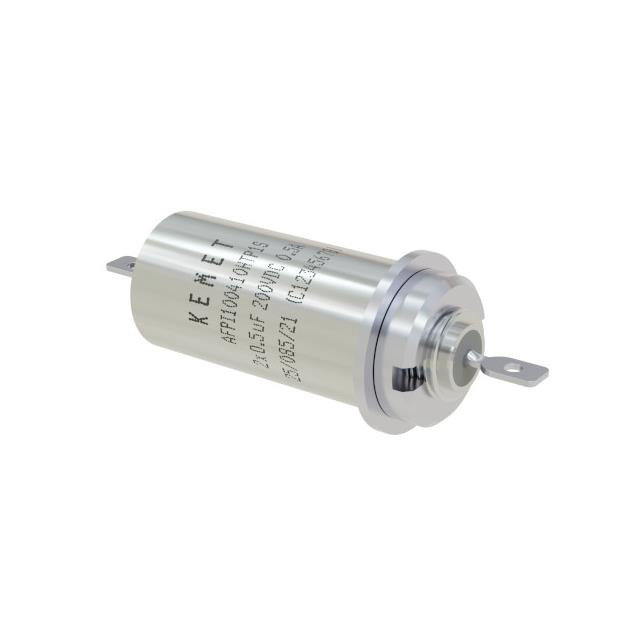

AFPI100410HJW1S
0.5 µF Feed Through Capacitor 200V 10 A 5mOhm Axial, Bushing
Technical Specifications
Parameters and characteristics for this part
| Specification | AFPI100410HJW1S |
|---|---|
| Capacitance | 0.5 µF |
| Current | 10 A |
| DC Resistance (DCR) (Max) | 5 mOhm |
| Insertion Loss | 100 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension Diameter | 0.39 in |
| Size / Dimension Length | 0.748 in |
| Type | Feed Through |
| Voltage - Rated | 200 VDC |
