VM3CQF1801L04
ActiveCIT Relay and Switch
SWITCH LIMIT SPDT 16A 125V
VM3CQF1801L04
ActiveCIT Relay and Switch
SWITCH LIMIT SPDT 16A 125V
Description
General part information
VM3CQF1801L04

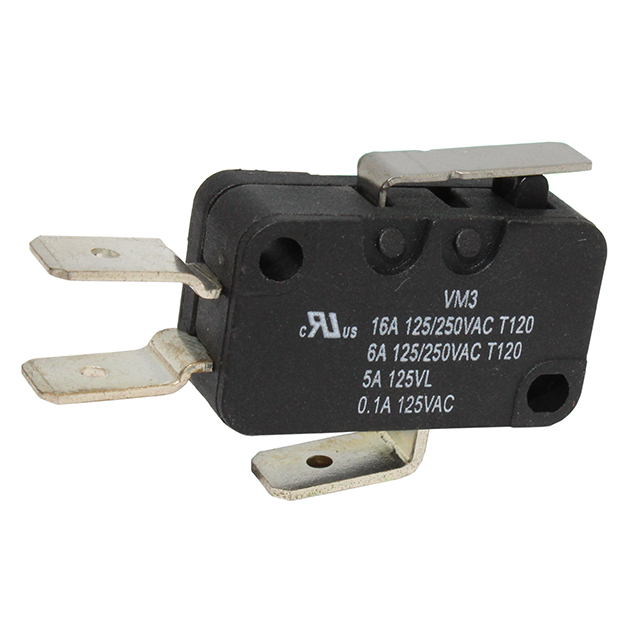

Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | VM3CQF1801L04 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating | 16 A |
| Differential Travel (Linear) | 0.02 in |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 145 gf |
| Operating Position (Length) | 0.56 in |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Overtravel (Linear) | 0.047 in |
| Pretravel (Length) | 0.087 in |
| Quick Connect Size (0.250") | 0.25 in |
| Release Force | 60 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
