COM-09481
ActiveSparkFun Electronics

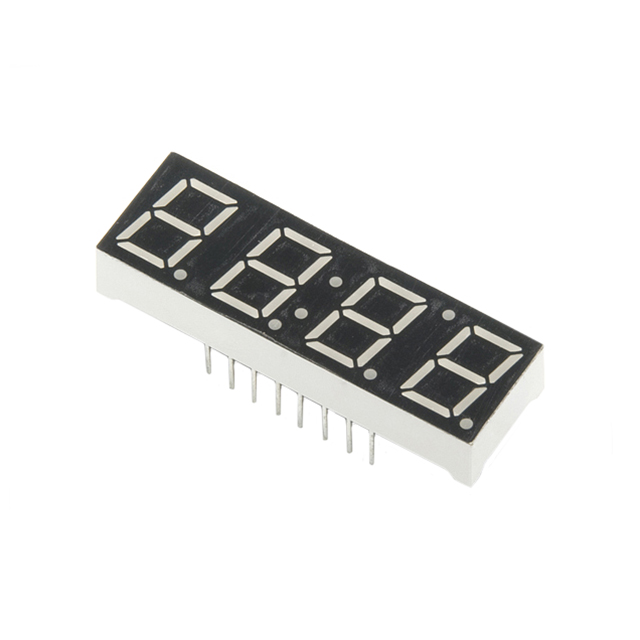

DISPLAY 7-SEG 0.39" QUAD BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
COM-09481
ActiveSparkFun Electronics
DISPLAY 7-SEG 0.39" QUAD BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-09481 |
|---|---|
| Color | Blue |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.39 in |
| Digit/Alpha Size | 10 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 200 mcd |
| Number of Characters | 4 |
| Size / Dimension [x] | 0.504 " |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [y] | 1.582 " |
| Size / Dimension [y] | 40.18 mm |
| Size / Dimension [z] | 0.276 in |
| Size / Dimension [z] | 7 mm |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
| Wavelength - Peak | 463 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.50 | |
Description
General part information
COM-094 Series
Display Modules - LED Character and Numeric Blue 7-Segment 4 Character Common Anode 3.4V 20mA 0.504" H x 1.582" W x 0.276" D (12.80mm x 40.18mm x 7.00mm)
