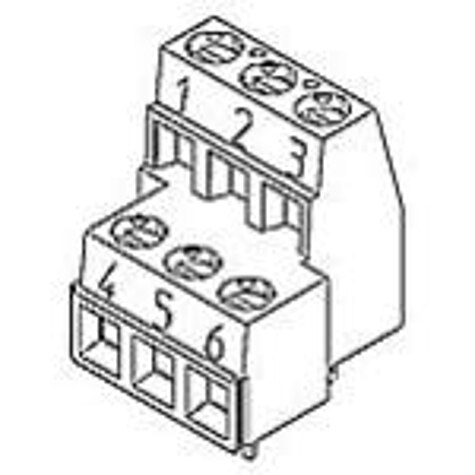

Specification	0398800532

Clamp Material	Brass
Clamp Plating	Nickel Plated
Color	Black
Contact Material	Copper
Current	13.5 A
Features	Interlocking (Side)
Housing Material	Nylon, Polyamide, PA
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	5.08 mm
Plating	Tin Plated
Positions Per Level	16
Screw Material	Bronze
Screw Plating	Nickel Plated
Screw Thread	M3
Torque - Screw	0.68 Nm
Voltage	300 V
Wire Gauge (AWG) (Max)	30 AWG
Wire Gauge (AWG) (Min)	16 AWG
Wire Termination	Rising Cage Clamp, Screw

039880 Series

...

Part	Color	Pitch	Current	Voltage	Features	Mating Orientation	Mounting Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Wire Termination	Number of Levels	Positions Per Level	Screw Plating	Screw Material	Clamp Material	Clamp Plating	Operating Temperature (Min)	Operating Temperature (Max)	Torque - Screw	Plating	Contact Material	Screw Thread	Housing Material	Mating Orientation (Angle) (Alternate)	Mating Orientation (Description)	Mating Orientation (Angle)
Molex 0398804306	Green	5.08 mm	13.5 A	300 V	Interlocking (Side)	Horizontal with Board	Through Hole	16 AWG	30 AWG	Rising Cage Clamp Screw	1	6	Nickel Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	105 °C	0.68 Nm	Tin Plated	Copper Alloy	M3	Nylon 4/6 PA46 Polyamide
Molex 0398800872	Black	5.08 mm	13.5 A	300 V	Interlocking (Side)	Horizontal with Board	Through Hole	16 AWG	30 AWG	Rising Cage Clamp Screw	3	24	Nickel Plated	Bronze	Brass	Nickel Plated	-40 °C	105 °C	0.68 Nm	Tin Plated	Copper Alloy	M3	Nylon PA Polyamide
Molex 0398800309	Black	5.08 mm	13.5 A	300 V	Interlocking (Side)	Horizontal with Board	Through Hole	16 AWG	30 AWG	Rising Cage Clamp Screw	1	9	Nickel Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	105 °C	0.68 Nm	Tin Plated	Copper Alloy	M3	Nylon PA Polyamide
Molex 0398805506	Black	5.08 mm					Through Hole			Rising Cage Clamp Screw	1	6												145 °	Angle with Board	35 °
Molex 0398800540	Black	5.08 mm	13.5 A	300 V	Interlocking (Side)	Horizontal with Board	Through Hole	16 AWG	30 AWG	Rising Cage Clamp Screw	2	20	Nickel Plated	Bronze	Brass	Nickel Plated	-40 °C	105 °C	0.68 Nm	Tin Plated	Copper	M3	Nylon PA Polyamide
Molex 0398801009	Black	5.08 mm	24 A	300 V	Interlocking (Side)	Horizontal with Board	Through Hole	12 AWG	30 AWG	Rising Cage Clamp Screw	3	3	Nickel Plated	Bronze	Brass	Nickel Plated	-40 °C	105 °C	0.79 Nm	Tin Plated	Copper Alloy	M3	Nylon PA Polyamide
Molex 0398801202	Black	5.08 mm	17.5 A	300 V	Interlocking (Side)	Vertical with Board	Through Hole	12 AWG	30 AWG	Rising Cage Clamp Screw	1	2	Nickel Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	105 °C	0.5 Nm	Tin Plated	Copper Alloy	M3	Nylon 6/6 PA66 Polyamide
Molex 0398800303	Black	5.08 mm	13.5 A	300 V	Interlocking (Side)	Horizontal with Board	Through Hole	16 AWG	30 AWG	Rising Cage Clamp Screw	1	3	Nickel Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	105 °C	0.68 Nm	Tin Plated	Copper Alloy	M3	Nylon PA Polyamide
Molex 0398801213	Black	5.08 mm	17.5 A	300 V	Interlocking (Side)	Vertical with Board	Through Hole	12 AWG	30 AWG	Rising Cage Clamp Screw	1	13	Nickel Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	105 °C	0.5 Nm	Tin Plated	Copper Alloy	M3	Nylon 6/6 PA66 Polyamide
Molex 0398800406	Black	5.08 mm	17.5 A	300 V			Through Hole	12 AWG	30 AWG	Rising Cage Clamp Screw	1	6	Nickel Plated	Copper Alloy	Copper Alloy	Nickel Plated	-40 °C	105 °C	0.79 Nm	Tin Plated	Copper	M3	Nylon PA Polyamide	145 °	Angle with Board	35 °
