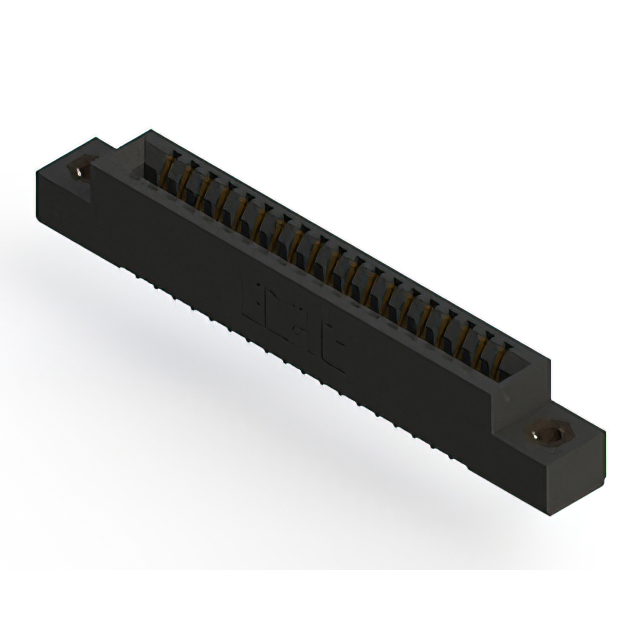

391-019-520-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 19POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-019-520-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 19POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-019-520-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
391-019 Series
| Part | Number of Positions | Number of Rows | Gender | Card Type | Material - Insulation | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Read Out | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 | |||
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 | |||
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm |
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm |
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm |
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm |
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm |
EDAC Inc. | 19 | 1 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Copper Alloy | Through Hole | Single | Black | 10 Áin | 0.25 Ám | Gold | Solder | 19 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.50 | |
Description
General part information
391-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
