CARA76207984

Active

Switchcraft Inc.

CBL ASSY 2.1MM PLUG-CBL RND 6.6'

Search across all available documentation for this part.

Active

Switchcraft Inc.

CBL ASSY 2.1MM PLUG-CBL RND 6.6'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CARA76207984	CARA76 Series

Cable Type	Round	Round
Connector Type [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Length	-	3.3 - 32.8 '
Length	-	1 - 10.01 m
Length [x]	6.6 ft	6.6 ft
Length [x]	2 m	2 m
Shielding	Unshielded	Unshielded
Style	Plug, Right Angle to Wire Leads	Plug, Right Angle to Wire Leads, Thread Lock, Plug, to Wire Leads, Right Angle, Sealed
Usage	-	Thread Lock, Sealed

DC POWER CORDS PLUG 0.100 IN P RA BLUNT 197 IN

Part	Length	Length	Shielding	Style	Connector Type [diameter]	Cable Type	Length [x]	Length [x]	Usage
Switchcraft Inc. CARA76019790	16.4 '	5 m	Unshielded	Plug, Right Angle to Wire Leads	2.5 mm, 5.5 mm	Round
Switchcraft Inc. CARA760K07990			Unshielded	Plug, Right Angle to Wire Leads	2.5 mm, 5.5 mm	Round	6.6 ft	2 m
Switchcraft Inc. CARA76204090	3.3 ft	1 m	Unshielded	Plug, Right Angle to Wire Leads	2.1 mm, 5.5 mm	Round
Switchcraft Inc. CARA762K04084	3.3 ft	1 m	Unshielded	Plug, Thread Lock, to Wire Leads	2.1 mm, 5.5 mm	Round			Thread Lock
Switchcraft Inc. CARA761KS04090	3.3 ft	1 m	Unshielded	Plug, Right Angle, Sealed, Thread Lock, to Wire Leads	2.5 mm, 5.5 mm	Round			Sealed, Thread Lock
Switchcraft Inc. CARA76004084	3.3 ft	1 m	Unshielded	Plug, Right Angle to Wire Leads	2.5 mm, 5.5 mm	Round
Switchcraft Inc. CARA76207984			Unshielded	Plug, Right Angle to Wire Leads	2.1 mm, 5.5 mm	Round	6.6 ft	2 m
Switchcraft Inc. CARA760K19784	16.4 '	5 m	Unshielded	Plug, Right Angle to Wire Leads	2.5 mm, 5.5 mm	Round
Switchcraft Inc. CARA760K39484	32.8 '	10.01 m	Unshielded	Plug, Right Angle to Wire Leads	2.5 mm, 5.5 mm	Round
Switchcraft Inc. CARA767KS19790	16.4 '	5 m	Unshielded	Plug, Right Angle, Sealed, Thread Lock, to Wire Leads	2.1 mm, 5.5 mm	Round			Sealed, Thread Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

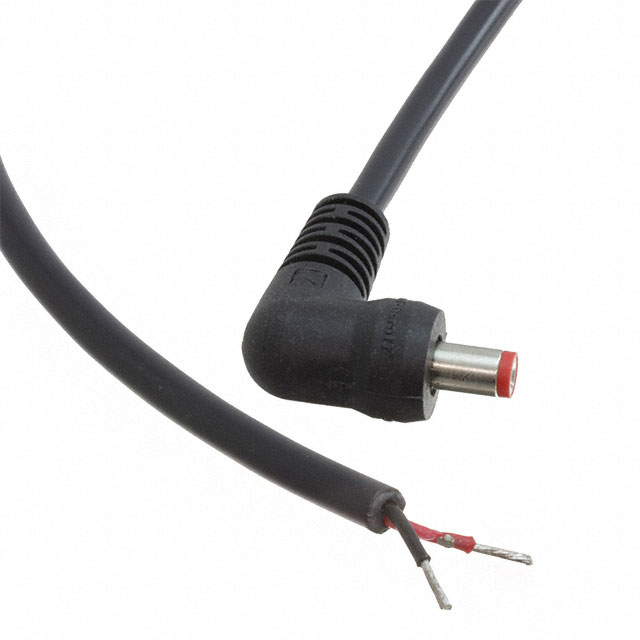

Cable Assembly 2.1mm ID, 5.5mm OD Plug, Right Angle to Wire Leads Round 6.6' (2.00m)
