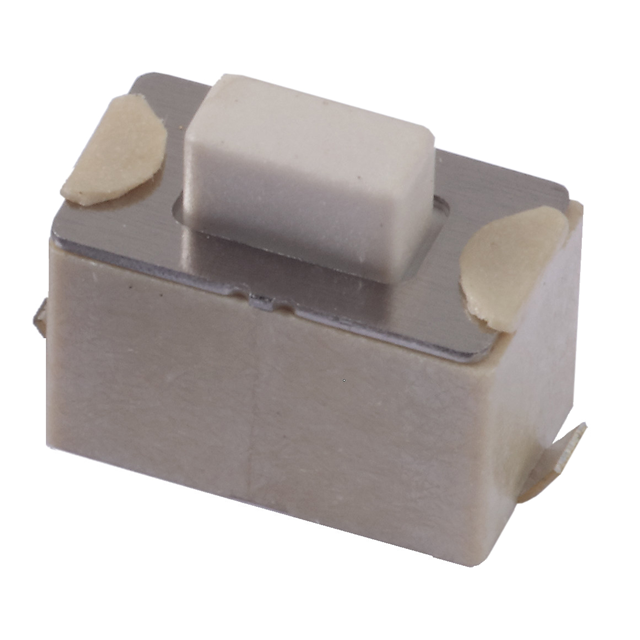

222BJVBBR

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	222BJVBBR

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	30000 Steps
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Switch Function	Actuator Height off PCB, Vertical	Illumination	Operating Force	Actuator Type	Circuit	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Mounting Type	Mechanical Life	Switch Travel	Features	Actuator Orientation
CTS Electrocomponents 222BJVBBR	J Lead	Off-Mom	5 mm	Non-Illuminated	260 gf	Rectangular Button	SPST-NO	0.05 A, 12 VDC	85 °C	-40 °C	3.5 mm	6 mm	Surface Mount	30000 Steps	0.25 mm	Tactile Feedback	Top Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10500	$ 0.16

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
