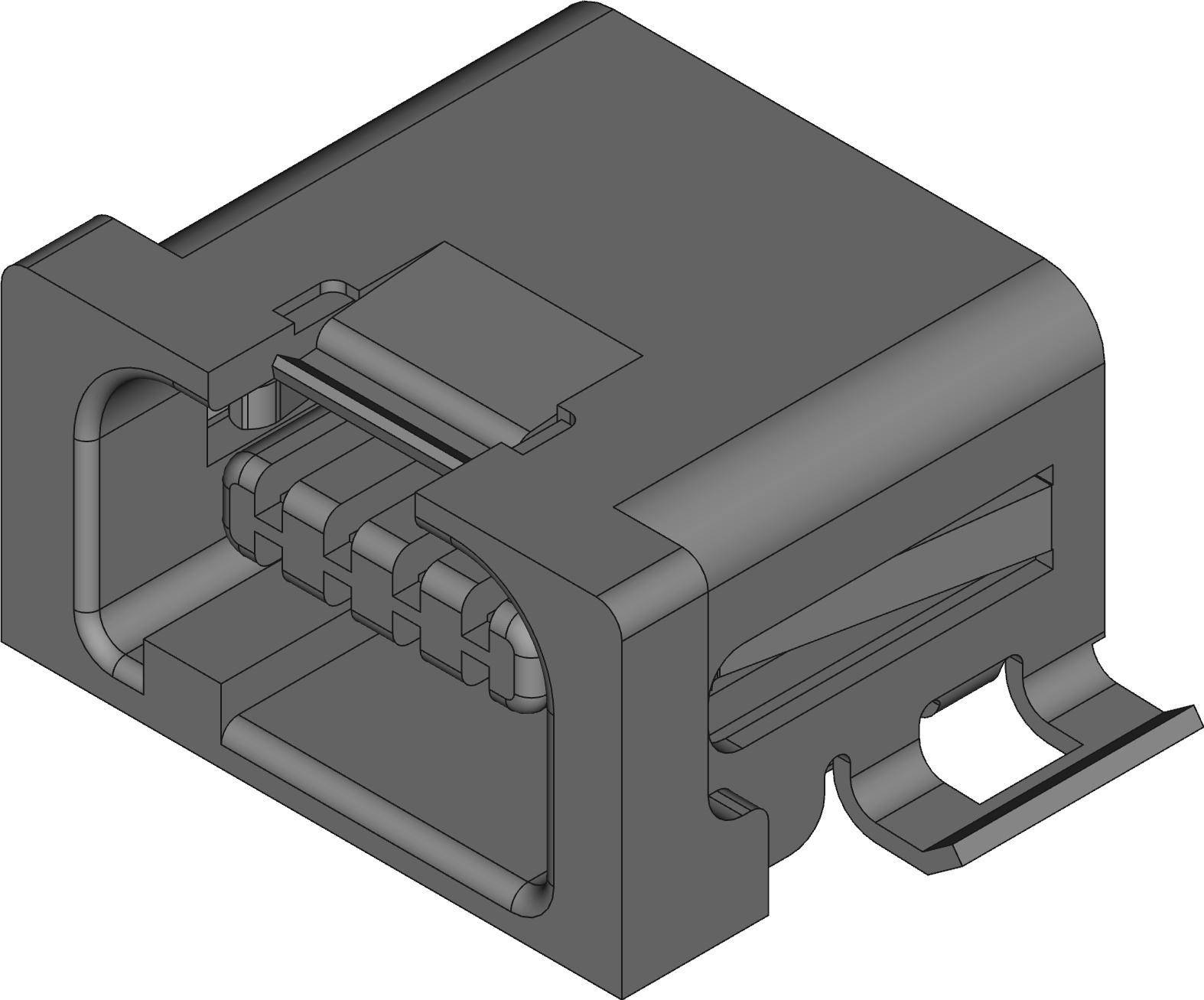

MQ172X-4PA(31)
ActiveHirose Electric Co Ltd
CONN MICRO-MINIATURE INTERFACE RCP 4 POS 0.8MM SOLDER RA SMD 4 TERMINAL 1 PORT REEL
MQ172X-4PA(31)
ActiveHirose Electric Co Ltd
CONN MICRO-MINIATURE INTERFACE RCP 4 POS 0.8MM SOLDER RA SMD 4 TERMINAL 1 PORT REEL
Description
General part information
MQ172X-4PA(31)
CONN MICRO-MINIATURE INTERFACE RCP 4 POS 0.8MM SOLDER RA SMD 4 TERMINAL 1 PORT REEL
Technical Specifications
Parameters and characteristics for this part
| Specification | MQ172X-4PA(31) |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 8 µin |
| Contact Type | Center Strip Contact |
| Current Rating Options | 0.5A, 2A, 2A or 0.5A, 3A |
| Fastening Type | Friction Lock |
| Features | Solder Retention, Board Guide, Shielded |
| Insulation Color | Black |
| Insulation Height | 0.154 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch - Mating | 0.031 in |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating (AC) | 40 VAC |
| Voltage Rating (DC) | 30 VDC |
