2-964983-2
ActiveTE Connectivity AMP Connectors

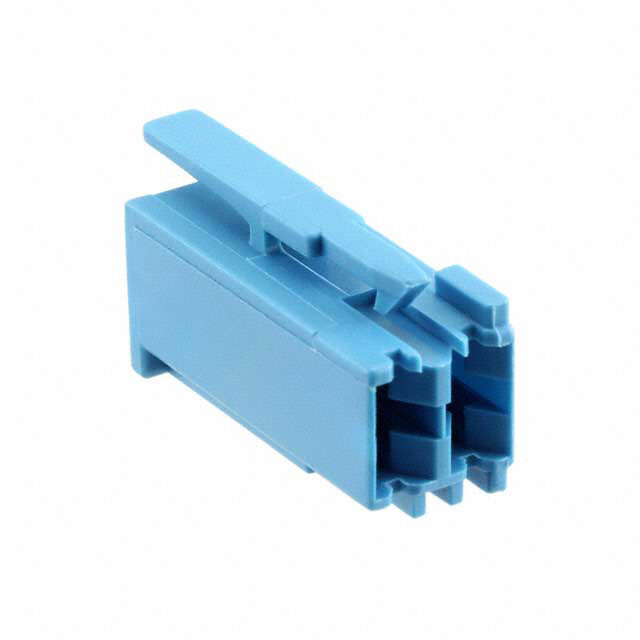

CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
2-964983-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-964983-2 | 964983 Series |
|---|---|---|
| Color | Blue | Blue |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 - 6 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 24000 | $ 0.19 | |
964983 Series
CONN HSG 6POS STD TIMER GEH
| Part | Number of Positions | Contact Termination | Fastening Type | Note | Mounting Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Connector Type | Number of Rows | Color | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 964983-6 | 6 | Crimp | Latch Lock | Contacts Not Included | Free Hanging (In-Line) | Female Socket | ||||||||
TE Connectivity AMP Connectors 2-964983-2 | 2 | Crimp | Latch Lock | Contacts Not Included | Free Hanging (In-Line) | Female Socket | -40 °C | 105 ░C | 5 mm | 0.197 in | Receptacle | 1 | Blue | Polyamide (PA66), Nylon 6/6 |
Description
General part information
964983 Series
2 Rectangular Connectors - Housings Receptacle Blue 0.197" (5.00mm)
Documents
Technical documentation and resources
No documents available
