PA4319.684NLT
ActivePulse Electronics
FIXED IND 680UH 290MA 1.98OHM SM
PA4319.684NLT
ActivePulse Electronics
FIXED IND 680UH 290MA 1.98OHM SM
Description
General part information
PA4319.684NLT

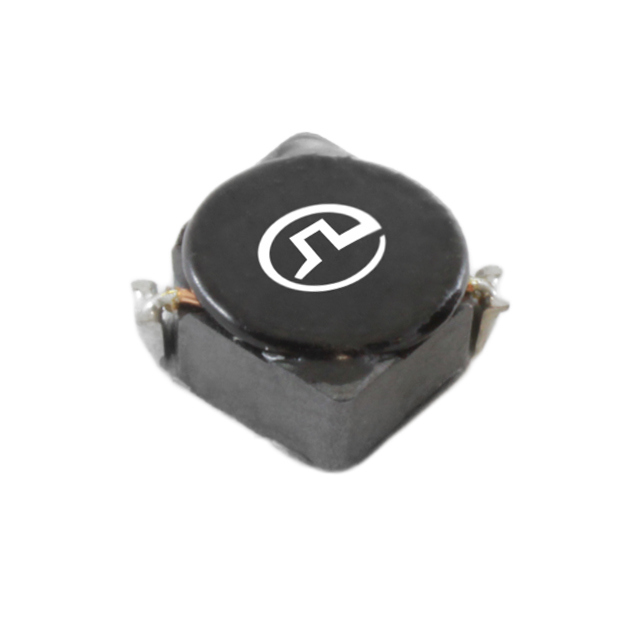

680 µH Shielded Wirewound Inductor 290 mA 1.98Ohm Max Nonstandard, Corner Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4319.684NLT |
|---|---|
| Current - Saturation (Isat) | 0.22 mA |
| Current Rating | 0.29 A |
| DC Resistance (DCR) (Max) | 1.98 Ohm |
| Height - Seated (Max) | 0.161 in |
| Inductance | 680 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard, Corner Terminals |
| Shielding | Shielded |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 10 % |
| Type | Wirewound |
