WB242D1100

Active

E-Switch

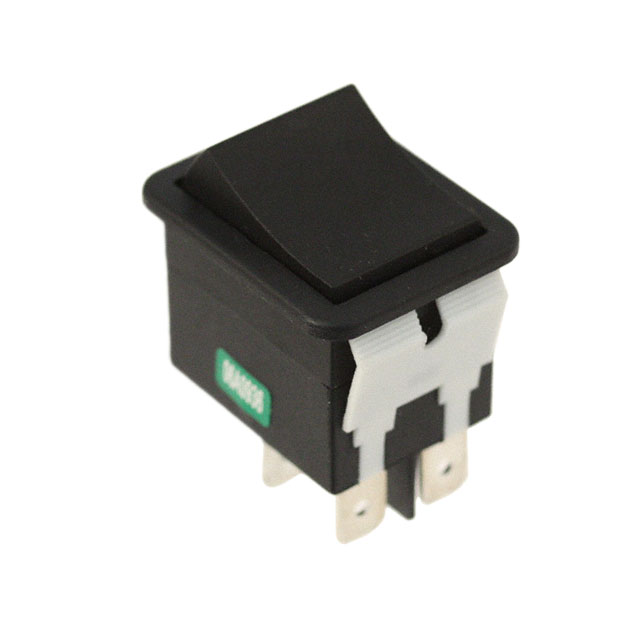

SWITCH ROCKER DPST 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPST 20A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	WB242D1100	WB242D1 Series

Actuator Marking	No Marking	O I, O -, No Marking
Actuator Type	Concave (Curved)	Concave (Curved)
Approval Agency	CE, TUV, cULus	CE, TUV, cULus
Circuit	DPST	DPST
Color - Actuator/Cap	Black	Black, Red
Current Rating (Amps)	20 A	20 A
Features	-	Sealing Boot
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30 mm	30 mm
Panel Cutout Dimensions [y]	22 mm	22 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER DPST 20A 125V

Part	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Type	Switch Function	Current Rating (Amps)	Mounting Type	Color - Actuator/Cap	Approval Agency	Voltage Rating - AC	Circuit	Actuator Marking	Ingress Protection	Features
E-Switch WB242D112R	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	Concave (Curved)	On-Off	20 A	Panel Mount, Snap-In	Black	CE, cULus, TUV	125 V	DPST	O I	IP55 - Dust Protected, Water Resistant
E-Switch WB242D1121-ACC-KF05	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	Concave (Curved)	On-Off	20 A	Panel Mount, Snap-In	Black	CE, cULus, TUV	125 V	DPST	O -	IP55 - Dust Protected, Water Resistant	Sealing Boot
E-Switch WB242D1921	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	Concave (Curved)	On-Off	20 A	Panel Mount, Snap-In	Red	CE, cULus, TUV	125 V	DPST	O -	IP55 - Dust Protected, Water Resistant
E-Switch WB242D1100	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	Concave (Curved)	On-Off	20 A	Panel Mount, Snap-In	Black	CE, cULus, TUV	125 V	DPST	No Marking	IP55 - Dust Protected, Water Resistant
E-Switch WB242D1121	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	Concave (Curved)	On-Off	20 A	Panel Mount, Snap-In	Black	CE, cULus, TUV	125 V	DPST	O -	IP55 - Dust Protected, Water Resistant
E-Switch WB242D1100-ACC-KF05	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	Concave (Curved)	On-Off	20 A	Panel Mount, Snap-In	Black	CE, cULus, TUV	125 V	DPST	No Marking	IP55 - Dust Protected, Water Resistant	Sealing Boot
