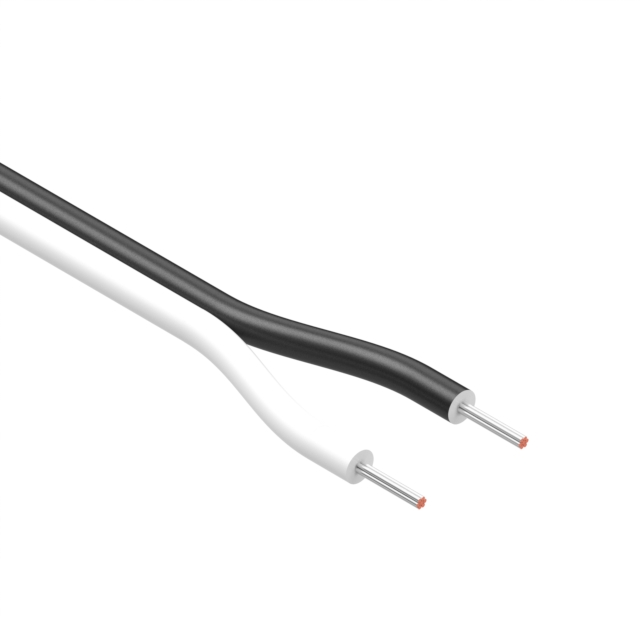

Specification	30-03179

Cable Type	Conductor, Multi
Conductor Strand Count	7 Strands
Conductor Strand Diameter	0.0047 in
Jacket (Insulation) Diameter	0.087 in
Jacket (Insulation) Material	Modified (mPPE), Polyphenylene Ether
Jacket (Insulation) Thickness	0.015 in
Jacket Color	White, Black
Length	502 ft
Number of Conductors	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Ratings	UL Style 21516, Style, UL, 21516
Voltage	600 V
Wire Gauge	28 AWG

- Series

...

Part	Jacket (Insulation) Material	Voltage	Ratings	Length	Jacket (Insulation) Diameter	Wire Gauge	Conductor Strand Diameter	Conductor Strand Count	Conductor Material	Jacket (Insulation) Thickness	Operating Temperature (Max)	Operating Temperature (Min)	Cable Type	Jacket Color	Connector Pin Count	Connector Type	Usage	Shielding	Color	Spool Size	Style	Mounting Type	Number of Positions	Number of Contacts	Features
Tensility International Corp 30-02528	Fluorinated Ethylene-Propylene (FEP)	300 V	1332 Style UL	1000.7 ft	0.099 in	14 AWG	0.0146 in	19	Copper Tinned	0.013 in	200 °C	-80 °C	Hook-Up	Purple
Tensility International Corp 10-03965				32.81 ft									Round		8 pos	8p8c Circular Male to RJ45	Cat6a Industrial Environments - IP67	Shielded	Black
Tensility International Corp 30-02595	Fluorinated Ethylene-Propylene (FEP)	300 V	1332 Style UL	3.28 ft 16.4 ft 98.43 ft 498.7 ft 1000.7 ft	0.041 in	28 AWG	0.005 in	7 Strands	Copper Tinned	0.013 in	200 °C	-80 °C	Hook-Up	Blue						1000.7 ft
Tensility International Corp 30-02562	Fluorinated Ethylene-Propylene (FEP)	300 V	1332 Style UL	3.28 ft 16.4 ft 98.43 ft 498.7 ft 1000.7 ft	0.056 in	22 AWG	0.0059 in	19	Copper Tinned	0.013 in	200 °C	-80 °C	Hook-Up	Black						1000.7 ft
Tensility International Corp 30-02535	Fluorinated Ethylene-Propylene (FEP)	300 V	1332 Style UL	3.28 ft 16.4 ft 98.43 ft 498.7 ft 1000.7 ft	0.085 in	16 AWG	0.0118 in	19	Copper Tinned	0.013 in	200 °C	-80 °C	Hook-Up	Blue						1000.7 ft
Tensility International Corp 30-02563	Fluorinated Ethylene-Propylene (FEP)	300 V	1332 Style UL	3.28 ft 16.4 ft 98.43 ft 498.7 ft 1000.7 ft	0.056 in	22 AWG	0.0059 in	19	Copper Tinned	0.013 in	200 °C	-80 °C	Hook-Up	White						1000.7 ft
Tensility International Corp 30-02553	Fluorinated Ethylene-Propylene (FEP)	300 V	1332 Style UL	3.28 ft 16.4 ft 98.43 ft 498.7 ft 1000.7 ft	0.064 in	20 AWG	0.0075 in	19	Copper Tinned	0.013 in	200 °C	-80 °C	Hook-Up	White						1000.7 ft
Tensility International Corp 10-03975				9.84 ft									Round Cable			Ethernet Plug to Plug RJ45		Shielded	Black		Cat6a	Free Hanging (In-Line)	8	8	26AWG
Tensility International Corp 30-02537	Fluorinated Ethylene-Propylene (FEP)	300 V	1332 Style UL	1000.7 ft	0.085 in	16 AWG	0.0118 in	19	Copper Tinned	0.013 in	200 °C	-80 °C	Hook-Up	Orange
Tensility International Corp 30-02574	Fluorinated Ethylene-Propylene (FEP)	300 V	1332 Style UL	3.28 ft 16.4 ft 98.43 ft 498.7 ft 1000.7 ft	0.05 in	24 AWG	0.0079 in	7 Strands	Copper Tinned	0.013 in	200 °C	-80 °C	Hook-Up	Yellow						1000.7 ft
