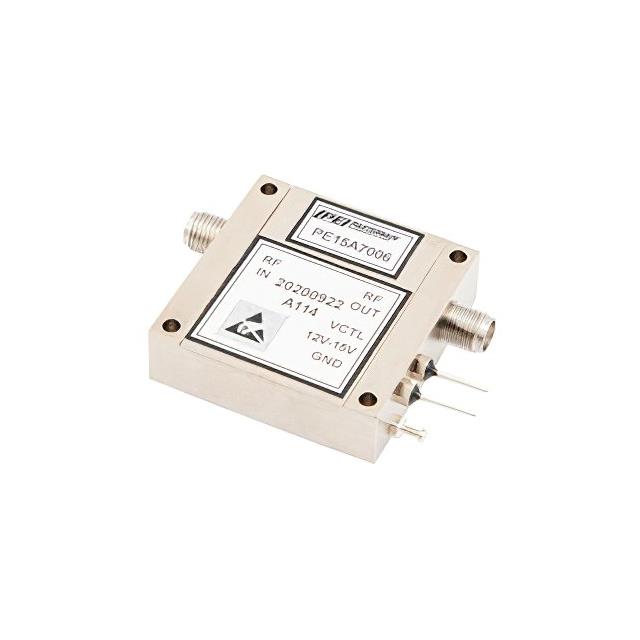

PE15A7006
ActivePasternack
40 DB VARIABLE GAIN AMPLIFIER, 1
PE15A7006
ActivePasternack
40 DB VARIABLE GAIN AMPLIFIER, 1
Description
General part information
PE15A7006
RF Amplifier IC SATCOM 6GHz ~ 18GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A7006 |
|---|---|
| Current - Supply | 315 mA |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 6 GHz |
| Gain | 45 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 3 dB |
| P1dB | 16 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | SATCOM |
| Voltage - Supply (Maximum) | 16 V |
| Voltage - Supply (Minimum) | 12 VDC |
