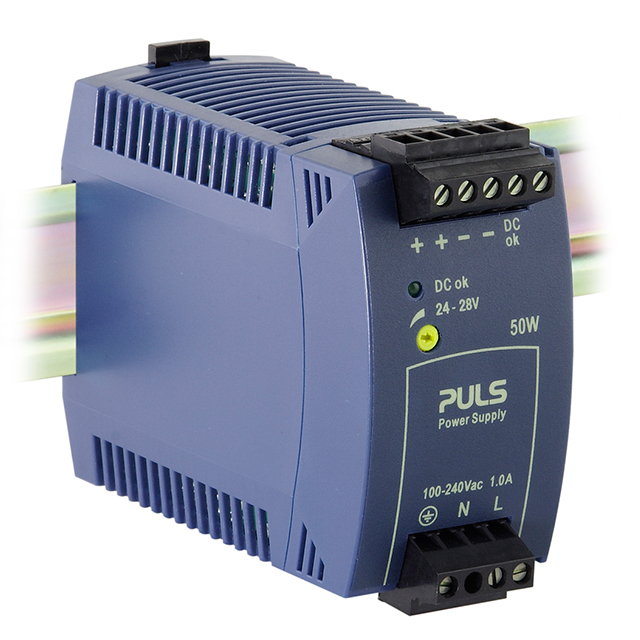

ML50.111
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 24V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ML50.111
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 24V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ML50.111 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | DNV GL, CSA, EAC, IEC, ABS, NEC, UL |
| Current - Output (Max) [Max] | 2.1 A |
| Efficiency | 88.5 % |
| Features | Universal Input, Adjustable Output, Load Sharing |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 3.58 in |
| Size / Dimension [x] | 91 mm |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [z] | 2.95 " |
| Size / Dimension [z] | 75 mm |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 201.60 | |
Description
General part information
ML50.111
AC/DC DIN RAIL SUPPLY 24V 50W
Documents
Technical documentation and resources
