GFTPX-4

Active

Curtis Industries

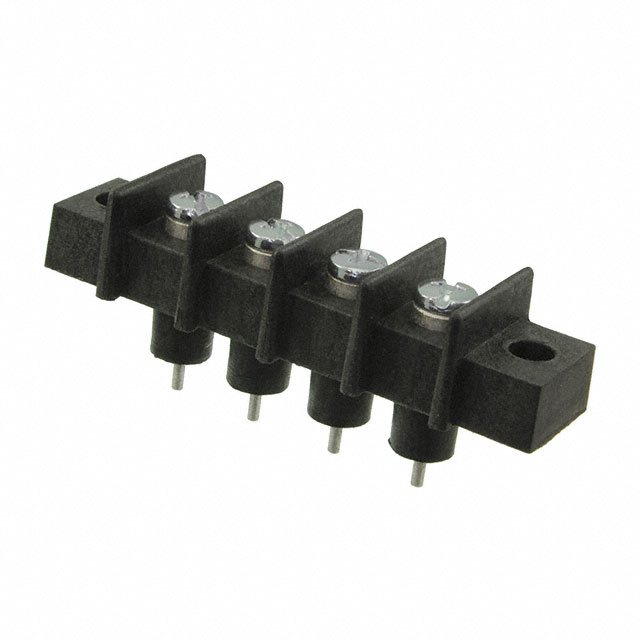

CONN BARRIER STRIP 4CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GFTPX-4

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.63
		10	$ 5.72
		25	$ 5.34
		50	$ 5.13
		100	$ 4.98
		250	$ 4.83
		500	$ 4.75
		1000	$ 4.69

Description

General part information

GFTPX Series

4 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GFTPX-4	GFTPX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin, Insulated	PC Pin, Insulated
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	4	1 - 24
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	4	2 - 21
Number of Wire Entries	-	1 - 23
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GFTPX Series

CONN BARRIER STRIP 5CIRC 0.438"

Part	Material - Insulation	Number of Circuits	Operating Temperature	Features	Terminal Block Type	Number of Wire Entries	Barrier Type	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Top Termination	Number of Rows	Pitch [x]	Pitch [x]	Bottom Termination	Mounting Type	Color	Current Rating (Amps)	Terminal Screw Material	Number of Wire Entries [custom]
Curtis Industries GFTPX-5	Polyphenylene Oxide (PPO)	5	110 °C	Flange	Barrier Block	5	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-2	Polyphenylene Oxide (PPO)	2	110 °C	Flange	Barrier Block	2	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-6	Polyphenylene Oxide (PPO)	6	110 °C	Flange	Barrier Block	6	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-24	Polyphenylene Oxide (PPO)	24	110 °C	Flange	Barrier Block		2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-13	Polyphenylene Oxide (PPO)	13	110 °C	Flange	Barrier Block	13	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-23	Polyphenylene Oxide (PPO)	23	110 °C	Flange	Barrier Block		2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel	23
Curtis Industries GFTPX-20	Polyphenylene Oxide (PPO)	20	110 °C	Flange	Barrier Block	20	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-21	Polyphenylene Oxide (PPO)	21	110 °C	Flange	Barrier Block	21	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-16	Polyphenylene Oxide (PPO)	16	110 °C	Flange	Barrier Block	16	2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1	11.12 mm	0.438 in	PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel
Curtis Industries GFTPX-1	Polyphenylene Oxide (PPO)	1	110 °C	Flange	Barrier Block		2 Wall (Dual)	12 AWG	22 AWG	UL94 V-0	Screws	1			PC Pin, Insulated	Chassis, Panel	Black	20 A	Steel	1
