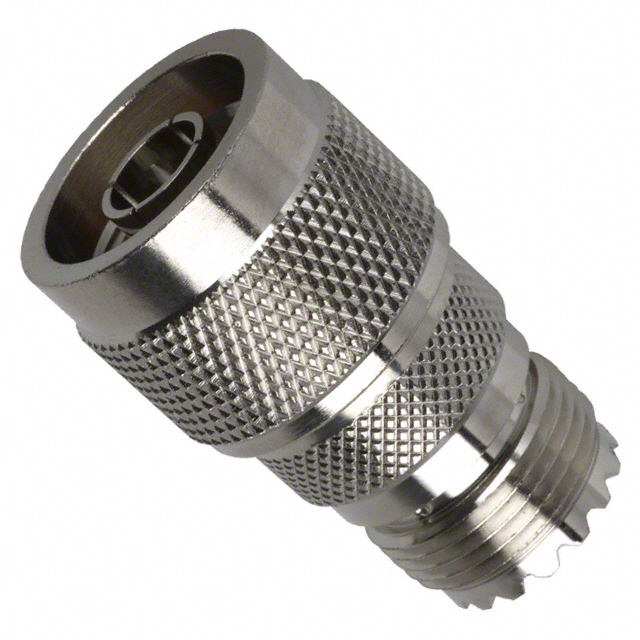

000-4400

Active

AMPHENOL RF

CONN ADAPT N PLUG TO UHF JACK

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN ADAPT N PLUG TO UHF JACK

Technical Specifications

Parameters and characteristics for this part

CONN ADAPT N PLUG TO UHF JACK

Part	Center Contact Plating	Mating Cycles	Conversion Type	Impedance	Center Contact Material	Convert From (Adapter End)	Adapter Type	Convert To (Adapter End)	Adapter Series	Mounting Type	Body Finish	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Style	Dielectric Material
AMPHENOL RF 000-4400	Silver	500	Between Series	50 Ohms	Brass	N Plug, Male Pin	Plug to Jack	Female Socket, UHF Jack	N to UHF	Free Hanging (In-Line)	Nickel	Brass	85 °C	-55 °C	300 MHz	Straight	Copolymer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To UHF Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
