FMCA3171-36
ActiveFairview Microwave
CBL ASSY BNCPLUG-SMAPLUG 36
FMCA3171-36
ActiveFairview Microwave
CBL ASSY BNCPLUG-SMAPLUG 36
Description
General part information
FMCA3171-36

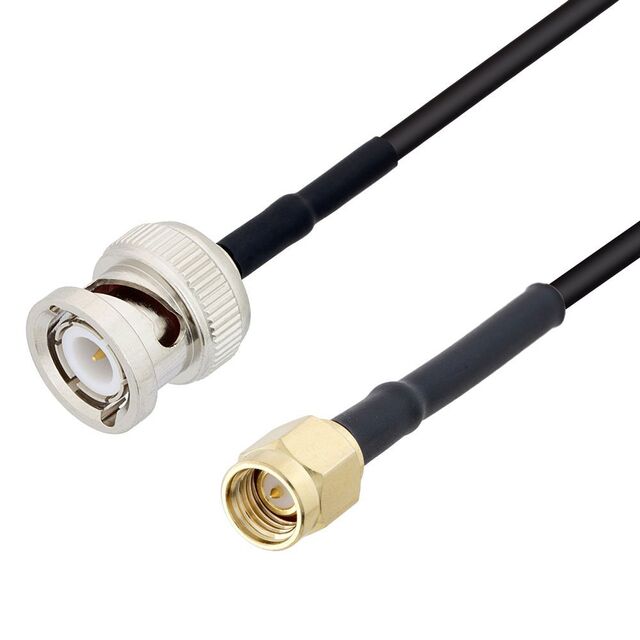

Cable Assembly Coaxial BNC to SMA LMR 100 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3171-36 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 100 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
