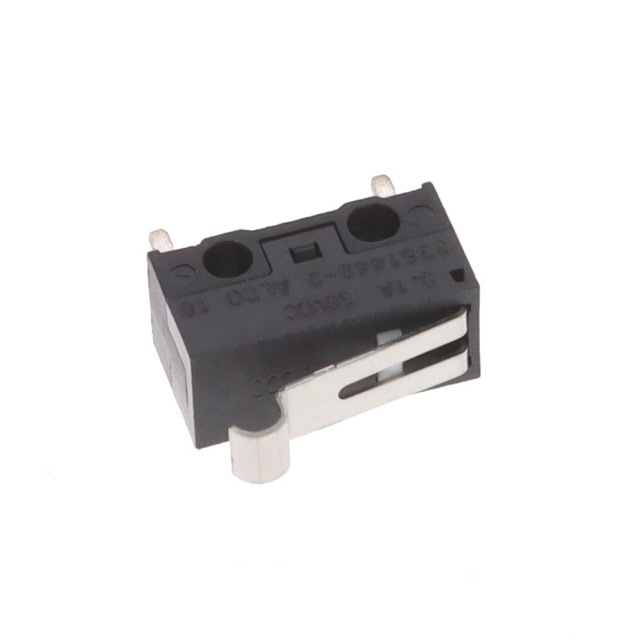

SAJ101XRHLN74SNCPTQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACT SPST-NC 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SAJ101XRHLN74SNCPTQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACT SPST-NC 0.1A 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SAJ101XRHLN74SNCPTQ

Actuator Type	Simulated Roller, Lever
Circuit	SPST-NC
Current Rating (Amps)	100 mA
Differential Travel	0.018 in
Differential Travel	0.45 mm
Electrical Life	30000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	40 gf
Operating Position	10.2 mm
Operating Position	0.4 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Overtravel	0.02 in
Overtravel	0.5 mm
Pretravel	0.15 in
Pretravel	3.8 mm
Release Force	2 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - DC	30 V

SAJ101 Series

Part	Circuit	Mechanical Life	Operating Position	Operating Position	Pretravel	Pretravel	Release Force	Overtravel	Overtravel	Switch Function	Differential Travel	Differential Travel	Current Rating (Amps)	Actuator Type	Termination Style	Voltage Rating - DC	Operating Force	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Operating Position [custom]	Operating Position [custom]
TE Connectivity Raychem Cable Protection SAJ101XBL0N74SDTPTQ	SPDT	1000000 Cycles	9.6 mm	0.378 in	0.087 in	2.2 mm	2 gf	0.022 in	0.55 mm	On-Mom	0.5 mm	0.02 in	100 mA	Lever Straight	PC Pin	30 V	26 gf	30000 Cycles	-25 °C	75 ░C	Through Hole
TE Connectivity Raychem Cable Protection SAJ101XBL0N74SNOPTQ	SPST-NO	1000000 Cycles	9.6 mm	0.378 in	0.087 in	2.2 mm	2 gf	0.022 in	0.55 mm	Off-Mom	0.5 mm	0.02 in	100 mA	Lever Straight	PC Pin	30 V	26 gf	30000 Cycles	-25 °C	75 ░C	Through Hole
TE Connectivity Raychem Cable Protection SAJ101XBL0N74SNCPTQ	SPST-NC	1000000 Cycles	9.6 mm	0.378 in	0.087 in	2.2 mm	2 gf	0.022 in	0.55 mm	On-Mom	0.5 mm	0.02 in	100 mA	Lever Straight	PC Pin	30 V	26 gf	30000 Cycles	-25 °C	75 ░C	Through Hole
TE Connectivity Raychem Cable Protection SAJ101XRHLN74SNCPTQ	SPST-NC	1000000 Cycles	10.2 mm	0.4 in	0.15 in	3.8 mm	2 gf	0.02 in	0.5 mm	On-Mom	0.45 mm	0.018 in	100 mA	Lever Simulated Roller	PC Pin	30 V	40 gf	30000 Cycles	-25 °C	75 ░C	Through Hole
TE Connectivity Raychem Cable Protection SAJ101XRHLN74SNOPTQ	SPST-NO	1000000 Cycles	10.2 mm	0.4 in	0.15 in	3.8 mm	2 gf	0.02 in	0.5 mm	Off-Mom	0.45 mm	0.018 in	100 mA	Lever Simulated Roller	PC Pin	30 V	40 gf	30000 Cycles	-25 °C	75 ░C	Through Hole
TE Connectivity Raychem Cable Protection SAJ101XPP0N74SDTPTQ	SPDT	1000000 Cycles	6.9 mm	0.272 in	0.02 in	0.5 mm	2 gf	0.008 in	0.2 mm	On-Mom	0.2 mm	0.008 in	100 mA	Round (Pin Plunger)	PC Pin	30 V	76 gf	30000 Cycles	-25 °C	75 ░C	Through Hole
TE Connectivity Raychem Cable Protection SAJ101XHL0N74SNCPTQ	SPST-NC	1000000 Cycles			0.12 in	3 mm	2 gf	0.022 in	0.55 mm	On-Mom	0.5 mm	0.02 in	100 mA	Lever Straight	PC Pin	30 V	26 gf	30000 Cycles	-25 °C	75 ░C	Through Hole	0.335 in	8.5 mm
TE Connectivity Raychem Cable Protection SAJ101XHL0N74SDTPTQ	SPDT	1000000 Cycles			0.12 in	3 mm	2 gf	0.022 in	0.55 mm	On-Mom	0.5 mm	0.02 in	100 mA	Lever Straight	PC Pin	30 V	26 gf	30000 Cycles	-25 °C	75 ░C	Through Hole	0.335 in	8.5 mm
TE Connectivity Raychem Cable Protection SAJ101XHL0N74SNOPTQ	SPST-NO	1000000 Cycles			0.12 in	3 mm	2 gf	0.022 in	0.55 mm	Off-Mom	0.5 mm	0.02 in	100 mA	Lever Straight	PC Pin	30 V	26 gf	30000 Cycles	-25 °C	75 ░C	Through Hole	0.335 in	8.5 mm
TE Connectivity Raychem Cable Protection SAJ101XPP0N74SNCPTQ	SPST-NC	1000000 Cycles	6.9 mm	0.272 in	0.02 in	0.5 mm	2 gf	0.008 in	0.2 mm	On-Mom	0.2 mm	0.008 in	100 mA	Round (Pin Plunger)	PC Pin	30 V	76 gf	30000 Cycles	-25 °C	75 ░C	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.69

Description

General part information

SAJ101 Series

Switch SPST-NC Through Hole
