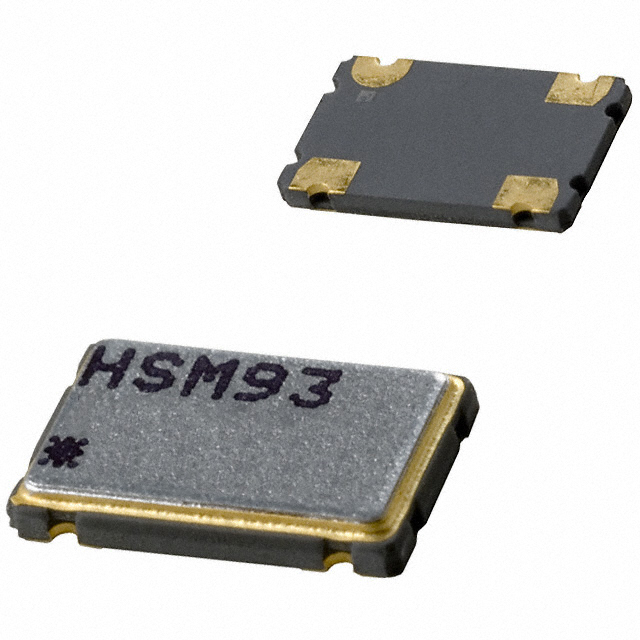

HSM93-010.0M
ObsoleteConnor Winfield
XTAL OSC XO 10.0000MHZ HCMOS SMD
HSM93-010.0M
ObsoleteConnor Winfield
XTAL OSC XO 10.0000MHZ HCMOS SMD
Description
General part information
HSM93-010.0M
10 MHz XO (Standard) HCMOS Oscillator 5V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | HSM93-010.0M |
|---|---|
| Base Resonator | Crystal |
| Frequency | 10 MHz |
| Frequency Stability | 100 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
