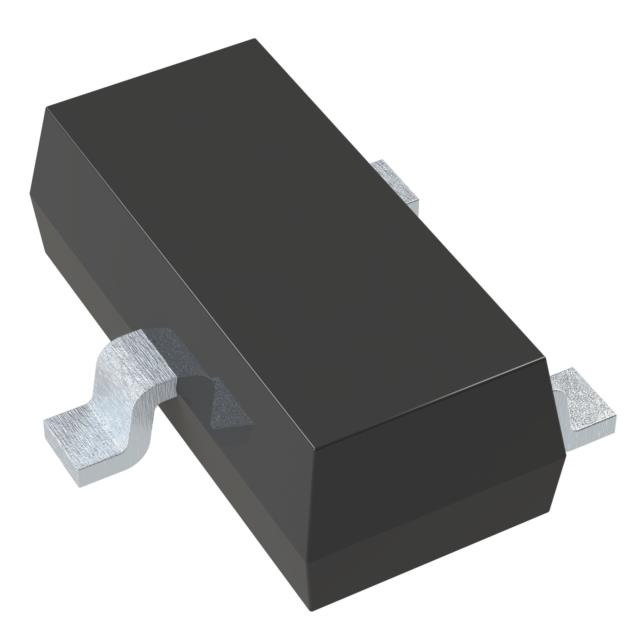

2SC1623-L5-TP

Active

Micro Commercial Co

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Co

INTERFACE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2SC1623-L5-TP	2SC1623 Series

Current - Collector (Ic) (Max) [Max]	100 mA	100 mA
Current - Collector Cutoff (Max) [Max]	100 nA	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	135 hFE	135 - 200 hFE
Frequency - Transition	250 MHz	250 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	200 mW	200 mW
Supplier Device Package	SOT-23	SOT-23
Transistor Type	NPN	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V	50 V

INTERFACE

Part	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Package / Case	Transistor Type	Mounting Type
Micro Commercial Co 2SC1623-L5-TP-HF	100 nA	SOT-23	135 hFE	50 V	200 mW	-55 °C	150 °C	250 MHz	100 mA	SC-59, SOT-23-3, TO-236-3	NPN	Surface Mount
Micro Commercial Co 2SC1623-L6-TP-HF	100 nA	SOT-23	200	50 V	200 mW	-55 °C	150 °C	250 MHz	100 mA	SC-59, SOT-23-3, TO-236-3	NPN	Surface Mount
Micro Commercial Co 2SC1623-L5-TP	100 nA	SOT-23	135 hFE	50 V	200 mW	-55 °C	150 °C	250 MHz	100 mA	SC-59, SOT-23-3, TO-236-3	NPN	Surface Mount
Micro Commercial Co 2SC1623-L7-TP	100 nA	SOT-23	135 hFE	50 V	200 mW	-55 °C	150 °C	250 MHz	100 mA	SC-59, SOT-23-3, TO-236-3	NPN	Surface Mount
Micro Commercial Co 2SC1623-L6-TP	100 nA	SOT-23		50 V	200 mW	-55 °C	150 °C	250 MHz	100 mA	SC-59, SOT-23-3, TO-236-3	NPN	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.03

General part information

Bipolar (BJT) Transistor NPN 50 V 100 mA 250MHz 200 mW Surface Mount SOT-23
