RVCA0805JT750K
ActiveStackpole Electronics Inc
RES, HV, 0805, 750 KOHM, 5%, 0.1
RVCA0805JT750K
ActiveStackpole Electronics Inc
RES, HV, 0805, 750 KOHM, 5%, 0.1
Description
General part information
RVCA0805JT750K

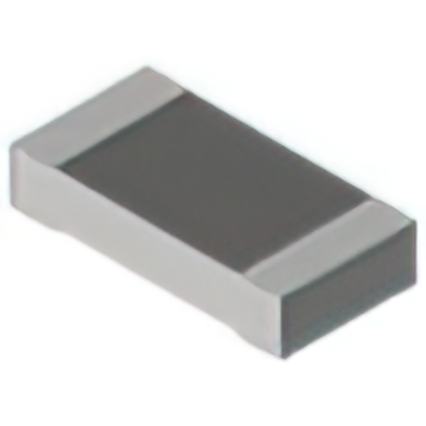

750 kOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200, High Voltage Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RVCA0805JT750K |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Anti-Sulfur, High Voltage |
| Height - Seated (Max) | 0.024 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Power (Watts) | 0.125 W |
| Power (Watts) Options | 1/8W |
| Ratings | AEC-Q200 |
| Resistance | 750 kOhm |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
