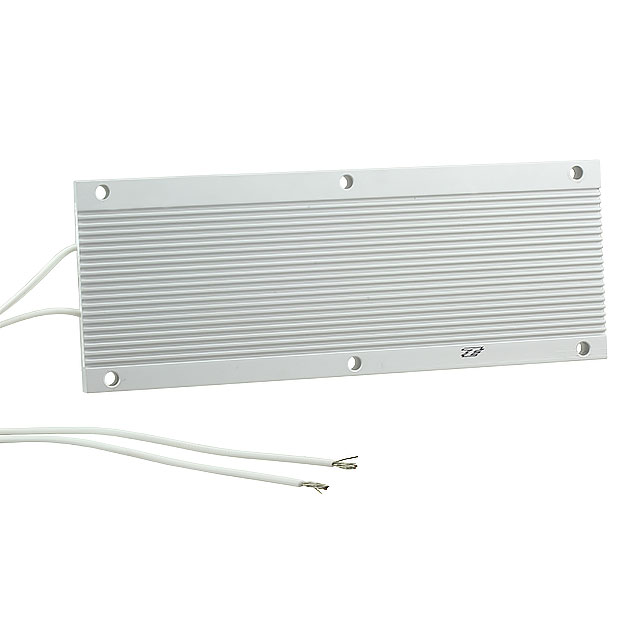

TJT2501R0J
ActiveTE Connectivity AMP Connectors
RES CHAS MNT 1 OHM 5% 250W
Deep-Dive with AI
Search across all available documentation for this part.
TJT2501R0J
ActiveTE Connectivity AMP Connectors
RES CHAS MNT 1 OHM 5% 250W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TJT2501R0J |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] | 0.394 in |
| Height - Seated (Max) [Max] | 10 mm |
| Lead Style | Wire Leads |
| Mounting Feature | Screw Holes |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Rectangular Case |
| Power (Watts) | 250 W |
| Resistance | 1 Ohms |
| Size / Dimension [x] | 7.087 " |
| Size / Dimension [x] | 180 mm |
| Size / Dimension [y] | 3.15 in |
| Size / Dimension [y] | 80 mm |
| Temperature Coefficient | 260 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TJT250 Series
RES CHAS MNT 1 OHM 5% 250W
| Part | Resistance | Composition | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Lead Style | Mounting Feature | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Coating, Housing Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors TJT2501R0J | 1 Ohms | Wirewound | -25 °C | 250 °C | Rectangular Case | 260 ppm/°C | 3.15 in | 80 mm | 7.087 " | 180 mm | Wire Leads | Screw Holes | 0.394 in | 10 mm | 5 % | Aluminum | 250 W |
Description
General part information
TJT250 Series
1 Ohms ±5% 250W Wirewound Chassis Mount Resistor
