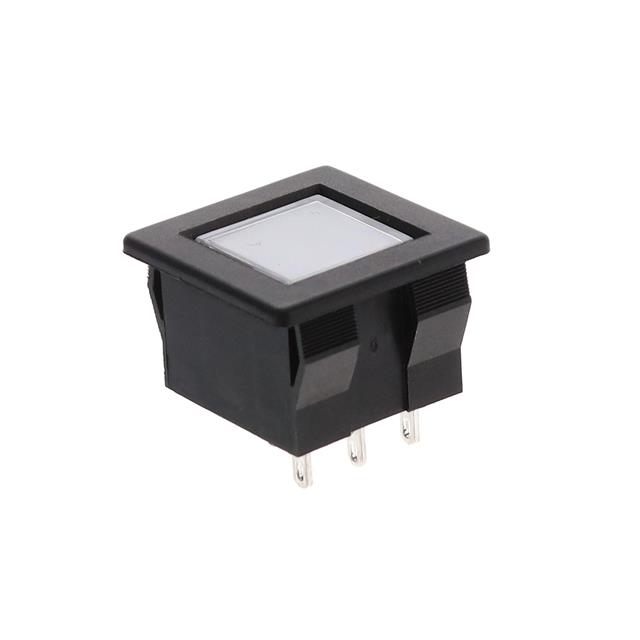

ULP12OAM1QPMCL1REDYEL

Active

E-Switch

SWITCH PUSHBUTTON SPDT 0.5A 250V

Deep-Dive with AI

Search across all available documentation for this part.

ULP12OAM1QPMCL1REDYEL

Active

E-Switch

SWITCH PUSHBUTTON SPDT 0.5A 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.14
		10	$ 5.52
		25	$ 5.26
		90	$ 4.98

Description

General part information

ULP12 Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ULP12OAM1QPMCL1REDYEL	ULP12 Series

Actuator Marking	No Marking	No Marking
Actuator Type	-	Rectangular, Button, Button, Square
Circuit	SPDT	SPDT
Color - Actuator/Cap	Clear	Clear, Black
Current Rating (Amps)	500 mA, 200 mA	0.4 - 500 VA
Electrical Life	200000 Cycles	200000 Cycles
Features	Tactile Feedback	Tactile Feedback
Illumination Type, Color	LED, Red/Yellow	Blue/Blue, LED, Green/Red, Yellow, Blue/Red, Blue, Green, Red/Yellow, Red
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Snap-In	Through Hole, Panel Mount, Snap-In
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [x]	17.7 mm	17.7 mm
Panel Cutout Dimensions [y]	15.8 mm	15.8 mm
Switch Function	On-Mom	On-Mom, On-On
Termination Style	Solder Lug	PC Pin, Solder Lug
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	250 V	28 - 250 V
Voltage Rating - DC	25 V	25 - 28 V

ULP12 Series

SWITCH PUSHBUTTON SPDT 0.4VA 28V

Part	Illumination Type, Color	Termination Style	Actuator Marking	Color - Actuator/Cap	Type	Voltage Rating - DC	Voltage Rating - AC	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Switch Function	Electrical Life	Actuator Type	Mechanical Life	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
E-Switch ULP12OAP1RRFCL1BLUBLU	Blue/Blue, LED	PC Pin	No Marking	Clear	Illuminated, Standard	28 V	28 V	Tactile Feedback	-20 C	70 °C	0.4 VA	Through Hole	On-Mom	200000 Cycles	Rectangular, Button	1000000 Cycles	SPDT
E-Switch ULP12EEP1QSSCL1REDGRN	Green/Red, LED	PC Pin	No Marking	Clear	Illuminated, Standard	25 V	250 V	Tactile Feedback	-20 C	70 °C	200 mA, 500 mA	Through Hole	On-On	200000 Cycles	Button, Square	1000000 Cycles	SPDT
E-Switch ULP12OAP1RSSCL1YELNIL	LED, Yellow	PC Pin	No Marking	Clear	Illuminated, Standard	28 V	28 V	Tactile Feedback	-20 C	70 °C	0.4 VA	Through Hole	On-Mom	200000 Cycles	Button, Square	1000000 Cycles	SPDT
E-Switch ULP12OAM1RPMCL1BLURED	Blue/Red, LED	Solder Lug	No Marking	Clear	Illuminated, Standard	28 V	28 V	Tactile Feedback	-20 C	70 °C	0.4 VA	Panel Mount, Snap-In	On-Mom	200000 Cycles		1000000 Cycles	SPDT	15.8 mm	17.7 mm
E-Switch ULP12OAP1RSFCL1YELBLU	Blue, LED, Yellow	PC Pin	No Marking	Clear	Illuminated, Standard	28 V	28 V	Tactile Feedback	-20 C	70 °C	0.4 VA	Through Hole	On-Mom	200000 Cycles	Button, Square	1000000 Cycles	SPDT
E-Switch ULP12OAM1QPMOP1NILNIL		Solder Lug	No Marking	Black	Standard	25 V	250 V	Tactile Feedback	-20 C	70 °C	200 mA, 500 mA	Panel Mount, Snap-In	On-Mom	200000 Cycles		1000000 Cycles	SPDT	15.8 mm	17.7 mm
E-Switch ULP12OAP1QSSCL1GRNNIL	Green, LED	PC Pin	No Marking	Clear	Illuminated, Standard	25 V	250 V	Tactile Feedback	-20 C	70 °C	200 mA, 500 mA	Through Hole	On-Mom	200000 Cycles	Button, Square	1000000 Cycles	SPDT
E-Switch ULP12OAM1QPMCL1REDGRN	Green/Red, LED	Solder Lug	No Marking	Clear	Illuminated, Standard	25 V	250 V	Tactile Feedback	-20 C	70 °C	200 mA, 500 mA	Panel Mount, Snap-In	On-Mom	200000 Cycles		1000000 Cycles	SPDT	15.8 mm	17.7 mm
E-Switch ULP12OAP1RSSCL1NILNIL		PC Pin	No Marking	Clear	Standard	28 V	28 V	Tactile Feedback	-20 C	70 °C	0.4 VA	Through Hole	On-Mom	200000 Cycles	Button, Square	1000000 Cycles	SPDT
E-Switch ULP12EEP1QSFCL1YELRED	LED, Red/Yellow	PC Pin	No Marking	Clear	Illuminated, Standard	25 V	250 V	Tactile Feedback	-20 C	70 °C	200 mA, 500 mA	Through Hole	On-On	200000 Cycles	Button, Square	1000000 Cycles	SPDT
